LCDR6U15-02 / HRP615 Sunlight-Readable Ultra High Brightness 6U Rackmount 15" TFT LCD Monitor Optional Composite Video & S-Video / DVI / BNC / NEMA 4 IP65 / DC Input adapter / Touchscreen



High Brightness  6U Rackmount 15" TFT LCD Monitor
    Panel: 15" LCD panel

Display type

TFT / LCD active matrix color

Resolutions

1024 x 768

Response time

Tr =5ms / Tf =20ms

Contrast ratio

300 : 1 typical

Brightness

1400 cd/ m2 typical

Pixel pitch

0.297mm (H) x 0.297mm (W)

Panel color

16.7 million display colors

Viewing angle

115? (Horiz.) / 100? (Vert.)

Storage temp.

-20to 60 șC

Operating temp.

 0to 50șC

MTBF

25,000 hours

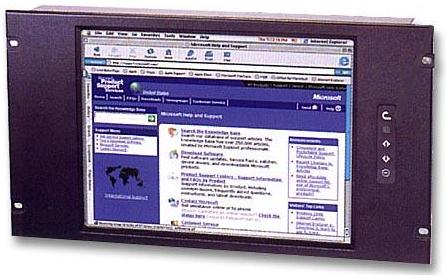

                  *click on the photo for enlarged view




               *click on the drawing for enlarged view

Features :

  • Styled 6mm aluminum front panel
  • Rugged metal construction, all black cladding is pre-treated and finished in powder coated paint
  • Designed to satisfy most commercial, industrial or military application requirements
  • Viewable under ambient lighting condition
  • High brightness(sunlight readable ) and contrast enhances display quality
  • Brightness more than 1400cd/m 2 -15"
  • Provides the longest lamp life possible for all brightness levels
  • Space-saving - Extra rackmounting space from the back of LCD panel
  • Built-in on screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • Supplied with 12V 5A remote power adapter (single power source)
  • All mounting hardware included

Power supply :

  • Remote adapter : 110V - 220 V AC Input , 12V 5A Output
  • Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
  • Cable length from mains plug to adapter : 6ft / 182cm
  • Cable length from adapter to unit : 6ft / 180cm
  • Safety approval : UL, CE
  • Mains plug options available
  • Optional - power adaptor 48V or 24V DC input available






Availability: Usually ships in 2-3 weeks.

LCDR6U15-02 / HRP615padRegular price: $1,699.00padSale price: $1,500.00pad


OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

DVI-D Input :

DC Input Power Adapter:

Touch Screen :
