LCDK1002 / RK-1 1U Rackmount Keyboard with Travel drawer & Front Lock , optional Trackball or Touchpad, & optional Gel Wrist Pad Optional PS2 or USB Connector & Cable

General Information
Form Factor	1U Rack mounting on slide-out rails
Compatibility	Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server Side Interface	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Rack Mounting	Adjustable ranges from 15.3" to 31.3" (390 to 795mm) Dimension Diagram
Keyboard & Pointing Device
Model n / e	Notebook type KB w/ 2-button Touchpad
Model b	Notebook type KB w/ 3-button mini Trackball
Model c	Cherry type KB w/ 2-button Trackball
Model d	Compact KB w/ 17-key numeric keypad and 3-button Trackball
Model t	Compact KB w/ 17-key numeric keypad and 2-button Touchpad
	Keyboard Details
Interface Option
	PS2 Type Interface
KB/MS Emulation	PS/2, with microprocessor support hot-plugging
Server Side Interface	VGA HD15, analog RGB and 2 x 6-pin mini DIN
Support Platform	MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS
	USB Type Interface
KB/MS Emulation	USB 1.1 Compliant, support hot-plugging
Server Side Interface	VGA HD15, analog RGB, USB type A, support hot-plugging
Support Platform	MS Windows 2000/XP, Solaris and SCO Unix
Rear I/O Connector
	Console port : HD15 female DC power input : Plug-round type
Regulatory Approval
	FCC , CE , VCCI ,
Optional Accessories & Peripheral
	Details
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -25 to 65 Degree Celsius (Storage)
Relative Humidity	90%, non condensing
Shock	50G peak acceleration (11ms, half since wave)
Vibration	58~500Hz/ 0.98G (11min/ cycle)
Mechanical
Product Dimension	17.4"(W) x 1.75"(H) x 21.6" (D) / 44.2(W) x 4.45(H) x 55(D)cm
Product Weight	Approximately 33 lbs / 15kg
Relative Humidity	90%, non condensing
Package Content
Package Content	Rackmount keyboard drawer x 1 , KVM cable x 1 , 110 / 220 V DC Power adapter x 1 , Adjustable Mounting Bracket x 1 pair, Keys for front lock x 2 , Fastener x 4 , User Manual x 1

Front View of LCDK1002 / RK-1

5 KEYBOARD OPTIONS :

Details of Keyboard Options

Features:

Rugged metal construction
Standard 19". 1U height rackmount keyboard drawer
Adjustable mounting brackets from 15.35" to 31.3" (390to 795mm), fits multiple depth cabinets between 650mm and 1000mm
OPTIONAL PS2 OR USB CONNECTOR & CABLE
Lightweight aluminum construction - with a black anodize finish
Fully compatible to IBM/AT keyboard
Front access Lock for security
Large padded wrist-rest for Compact keyboard
Slide Rails have fixed position to prevent movement of the keyboard
Lockable drawer to secure the keyboard and mouse
Ball bearing telescopic slides
15" drawer travel
Supplied with 12V 5A remote power adapter (single power source)
All mounting hardware included
One 6-ft long KVM cable included ( KVM cable length of 10-ft or 15-ft options available. More details )

More Photos (click on the photos below for enlarged views ):

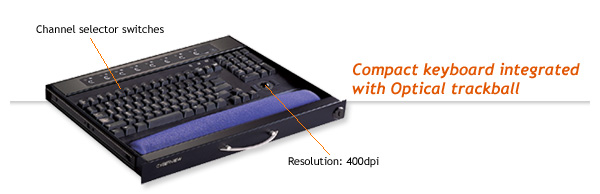

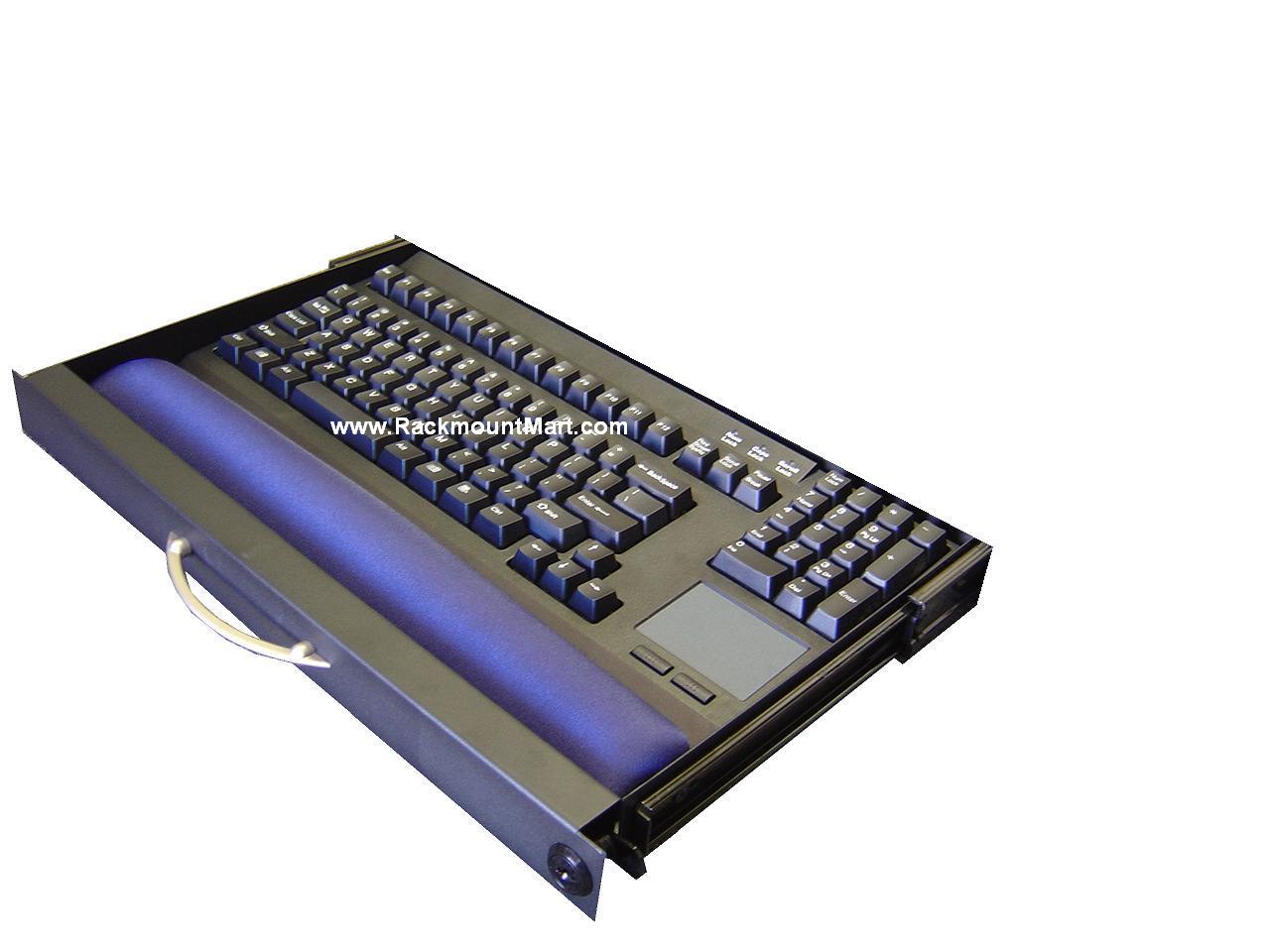

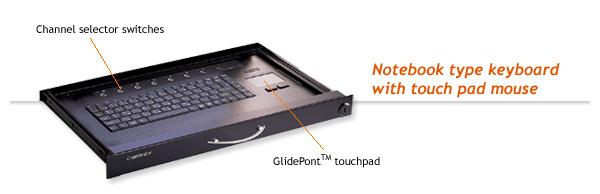

e/n : Notebook KB w/ touchpad d : Compact KB w/ trackball c : Cherry KB w/ trackball

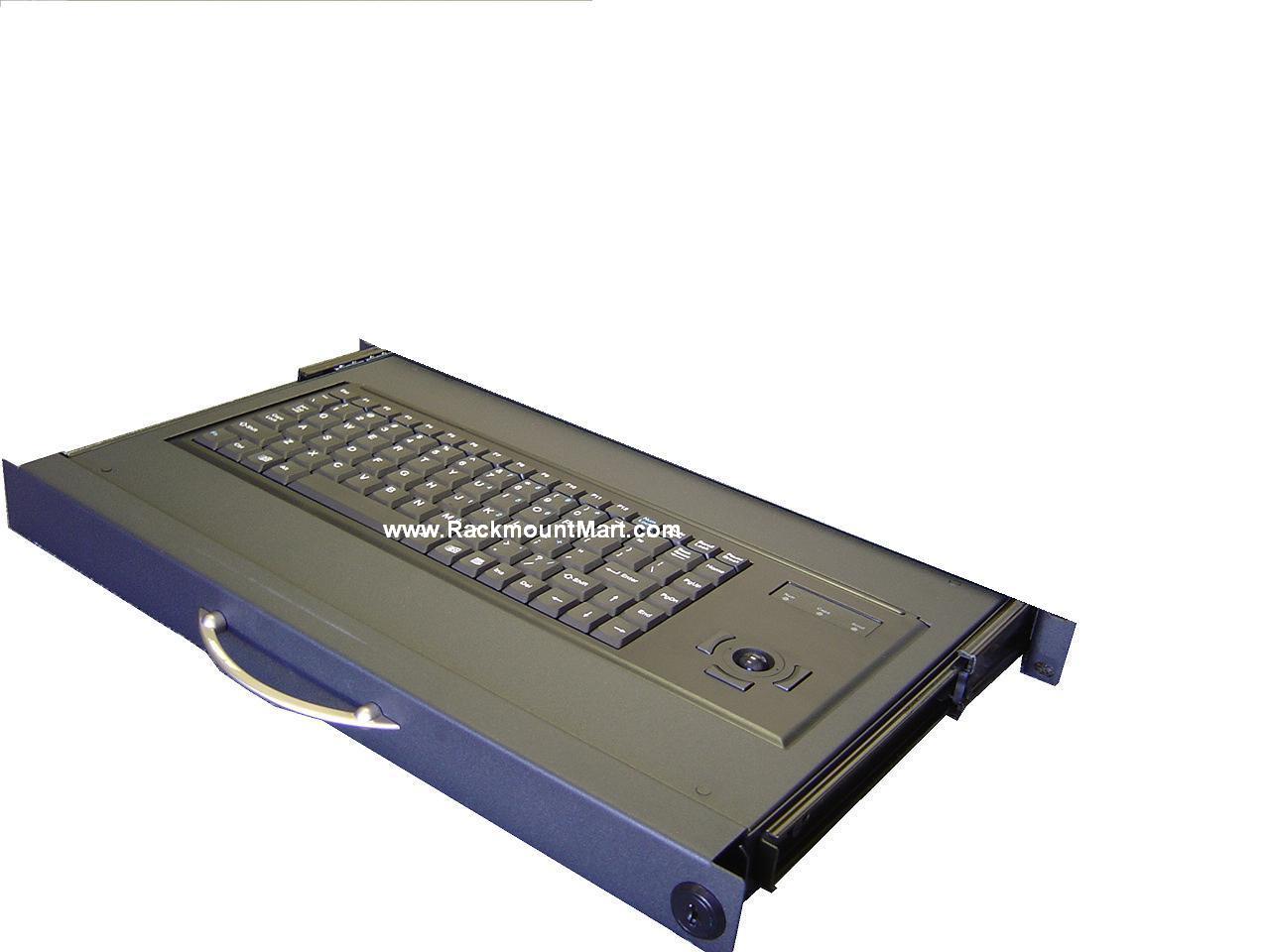

b: Notebook KB w/ touchpad t: Compact KB w/ trackball Dimension Diagram

Availability: Usually ships the same business day.

LCDK1002 / RK-1 Unit Price :

$220.00

PS2 Version(Usually ships the same business day):
USB Version (Lead time may be longer):
