Features:．Multi-platform
- Mix PCs, SUN Microsystems, IBM compatibles, HP, Compaq and Dell.
．Hot Pluggable - Add PCs or remove connected PCs for
maintenance without powering down the USB KVM
switch or PCs.
．No S/W required - Easy PC selection via on screen display
manual, push buttons and hot-key.
．Native support SUN 1152 x 900
．Support
Solaris multi-language
．Built-in microprocessor emulation for each port boots up process.
．High video quality with up to 1,920 x 1,440 and 200MHz bandwidth.
．Name servers up to 16 characters long.
．Scan mode with Monitor servers at intervals 5 to 99 seconds.
．Support eight characters password protection and search PC server name.
．VGA and USB two-in-one by 15pin HDDB connector at KVM side.
．Cascade for use up to 120 servers.
Front View :

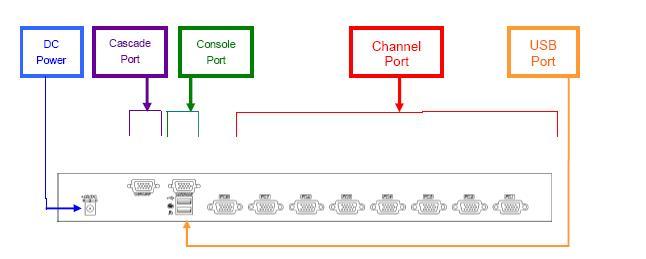

Rear View :
|
Item |
Specification |
|
PC
port |
8-Port
|
|
PC
Port interface |
HDDB 15 pin
|
|
PC
Computer Interface |
USB port: Type A Female |
|
|
VGA : HDDB 15pin Female |
|
KVM
Cable Connection |
2-in-one HDDB 15-pin KVM
Cable
(optional length of 6-ft / 10-ft / 15-ft )
|
|
LED
|
1 Bank LED , |
|
|
8 Online LED (Green)
|
|
|
8 Selected LED (Green)
|
|
PC
Selection |
On screen display menu, Hot key, Push
button |
|
On
screen display control |
Yes |
|
Scan
intervals |
5-99 seconds
|
|
Keyboard and mouse emulation |
USB |
|
VGA
resolution (Max.) |
1920 x 1440
|
|
CAT.5 cable length (Max.) |
N/A |
|
Bandwidth |
200MHz
|
|
Cascade Level (Max.) |
8 Levels
|
|
Housing |
Metal |
|
Power Adapter |
DC 12V 1A
|
|
Operation Temperature |
0~40 ℃
|
|
Humidity |
0~80%, Non-Condensing
|
Special Notes
-
****2-in-One USB KVM cable has optional length of 6-ft , 10-ft & 15-ft
(click here to see details of USB KVM cables).
Ordering information
|
Part Number |
Description |
|
LCDK1020 / CV-S801 |
1U Rackmount Single user
8-port USB KVM Switch with 8 x 6-ft USB KVM cables included |
|
LCD-A1014 / CB-6 |
6 ft 2 in 1 USB KVM
cable |
|
LCD-A1015 / CB-10 |
10 ft 2 in 1 USB KVM
cable |
|
LCD-A1016 / CB-15 |
15 ft 2 in 1 USB KVM
cable |
|
