-Server Management extendable up to 500 feet away from KVM switch

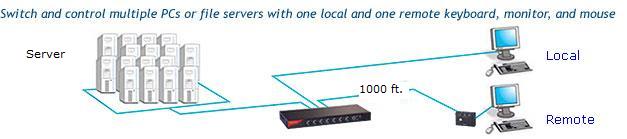

LCDK1025 / CV1602 is a 1U Rackmount 2 User ( 2 consoles, local & remote )  16-port PS/2  KVM switch. It enhances the
function of standard Single user PS/2 KVM with two simultaneous users when one of them is sitting 500-feet away in
maximum from the KVM switch. The two consoles PS/2 KVM switch can be configured for either 8 or 16 ports.

LCDK1025 / CV1602  supports various  VGA monitor types and PS/2 keyboard, PS/2 mouse peripherals. Cables of
LCDK1025/CV-1602 connecting to servers are with high compatibility while  STP / UTP cable is used to connect local
switch to remote console.

． Multi-platform - Mix PCs, SUN Microsystems, IBM compatibles, HP, Compaq and Dell.
． Hot Pluggable - Add PCs or remove connected PCs for maintenance without powering down the PS/2 KVM switch or PCs.
． No S/W required - Easy PC selection via on screen display manual, push buttons and hot-key.
． Support one CAT.5 remote console up to 500 feet away from KVM switch.
． Built-in microprocessor emulation for each port boots up process.
． High video quality with up to 1,920 x 1,440 and 200MHz bandwidth.
． Name servers up to 16 characters long.
． Scan mode with Monitor servers at intervals 5 to 99 seconds.
． Support eight characters password protection and search PC server name.
． VGA, keyboard & mouse all-in-one by 15pin HDDB connector at KVM side.
． Cascade for use up to 128 servers.

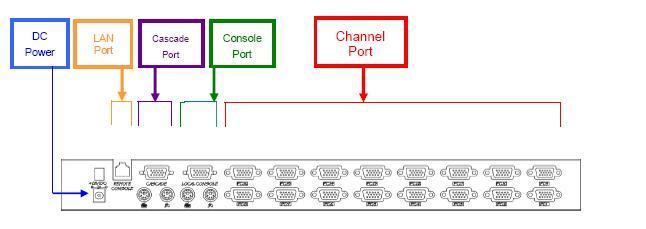

Rear View Diagram  :

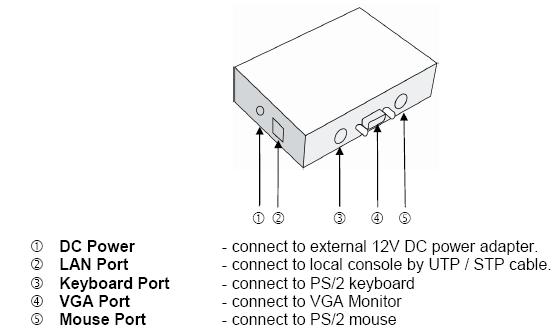

 CAT5 Remote Console  :

Special Notes -

****3-in-One PS/2 KVM cables has optional length of 6-ft , 10-ft , 15-ft. (click here to see details of PS/2 KVM cables).

Ordering  information
