Features :
-One rack unit high
(1.75").

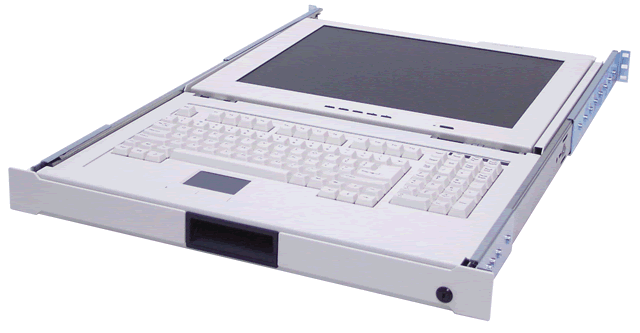

- Choice of black or light gray color.
- Display securely held in closed position.
- TFT surface protected by unbreakable shield.
- 17" active matrix TFT LCD display.
- Wide viewing angle, high brightness and contrast ratio.
- Front panel options include blank, lock and/or retainer.
- Display automatically powers off when in closed position.
- Attaches to a standard VGA card with provided signal cable.
- 26" ball bearing slides with adjustable extensions included.
Description :

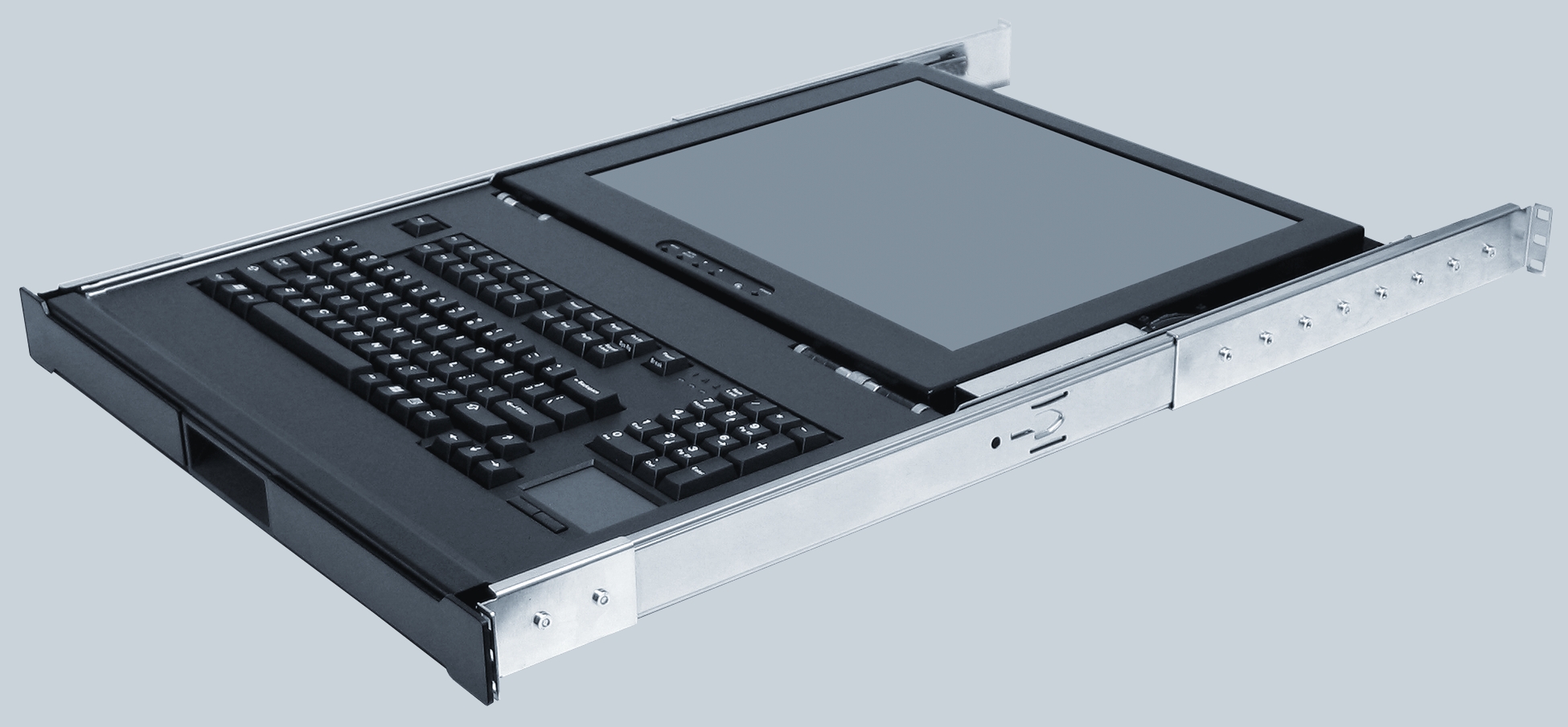

The LCD1U17-05 features a
choice of 17" TFT display, keyboard, and pointing device (touchpad or
trackball) integrated into one rack unit (1.75"). The display is a TFT
active matrix LCD which offers a wide viewing angle, and has high brightness
and contrast ratios. The display does not require special proprietary LCD
peripheral cards or drivers. It connects directly to a standard VGA
connector and automatically switches to the corresponding VGA mode. A Lexan

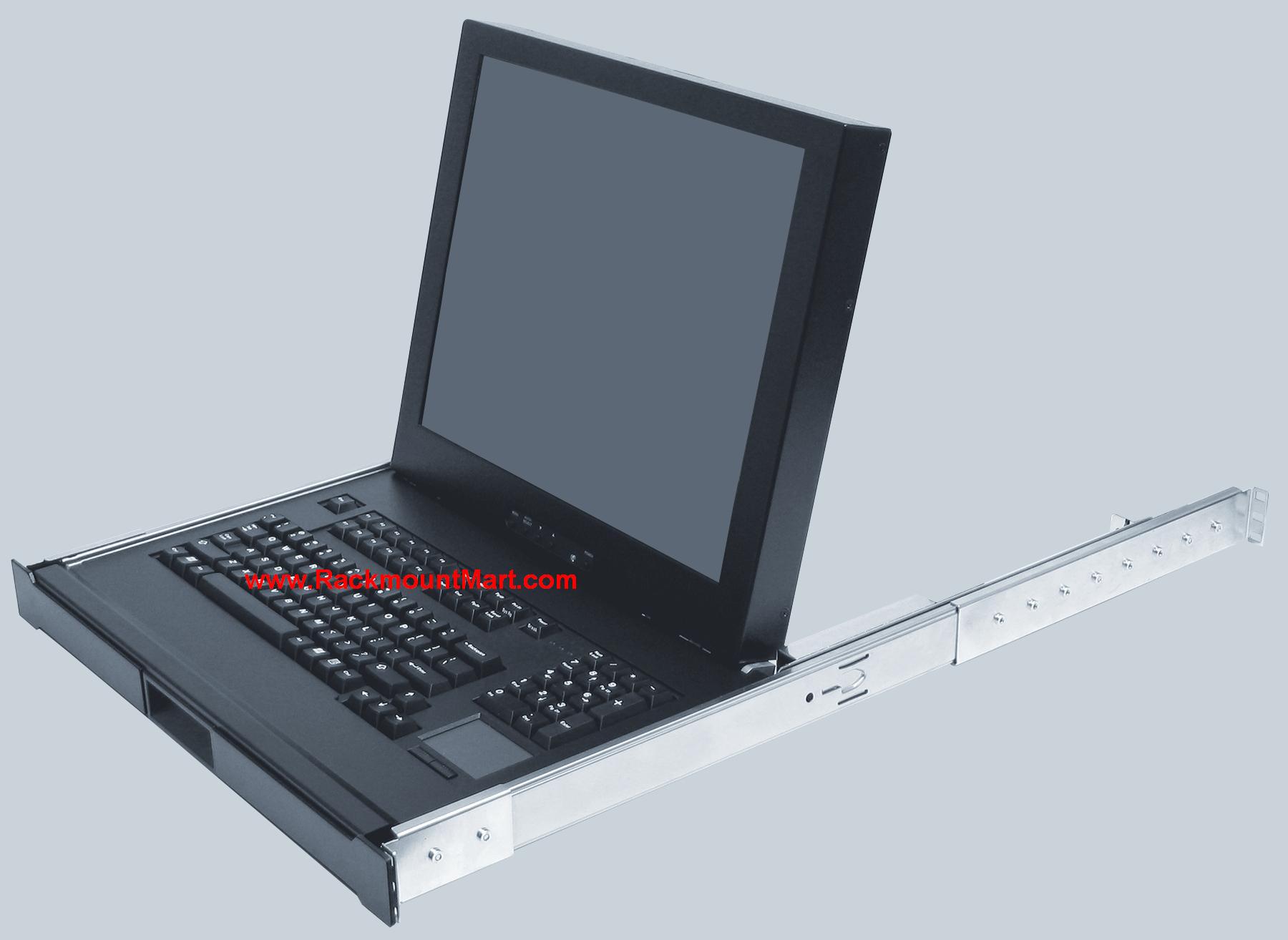

shield provides protection of the LCD screen from foreign materials. During
operation, the unit can be withdrawn from the rack to raise the display and
then pushed back half way into the rack to minimize space usage.
Specification
|
Dimensions |
19.0" (W) x 1.75" (H) x 25.75" (D) |
|
Color |
Black OR Light Gray |
|
Environment |
Temperature |
Operating: 0
to 50 degrees C
Storage: -20 to 60 degrees C |
| Humidity |
Operating: 10%
to 85% non-condensing |
|
DISPLAY SPECIFICATIONS |
|
Display Type |
Active matrix TFT LCD, 16.7 million colors. |
|
Resolution |
1280 x 1024 maximum |
|
Frequency |
Horizontal: 31.5 to 80 KHz
Vertical: 56 to 75 Hz |
|
Response Time |
25
ms typical. |
|
Brightness |
280 cd/m2 typical. |
|
Contrast Ratio |
1000:1 typical. |
|
Viewing Angle |
Horizontal: 178 degrees
Vertical: 178 degrees |
|
Input Signal |
Video: Analog RGB
Sync: H/V Separate (TTL) sync-on-green, composite |
|
Video Connector |
Signal: 15-pin mini D-sub, detachable |
|
On-Screen Controls |
Brightness, Contrast, Position (Vert. & Horiz.), Auto Adjust, OSD Horiz.
& Vert. position, Load and Save values. |
|
Power |
AC Input |
90-260VAC |
| Frequency |
50/60 Hz |
| Power
Consumption |
60 Watts
Maximum |
|
Plug & Play |
DDC1 and DDC2B |
|
KEYBOARD SPECIFICATIONS |
|
KB Connector |
PS/2 |
|
Keys |
Rollover |
Alpha N-key
rollover |
| Auto Repeat |
Yes |
| Self
Diagnostics |
At power on
and system reset |
| Data Buffer |
All codes
buffered before sending |
| Operating
Voltage |
+5 VDC +/- 5% |
| Operating
Current |
200mA |
|
KVM Use
: |
Only
KB version w/ Cherry Keyboard & touchpad can be used with KVM (part #
"cp" ) |
|
MOUSE SPECIFICATIONS |
|
Mouse |
Interface: PS/2 mini-din connector. |
|
Buttons: Left and Right buttons. Also supports tapping
function on pad surface for "Left" mouse clicks. |
|
Operating System: DOS, Windows 3.x, Windows 95/98,
Windows 2K, Windows NT, XP. |
|
OPTION |
|
|
Interface connector : PS/2 OR USB |
|
Lock / Retainer / Composite & S-Video Input/ Touch screen |
Ordering information :
|
Part # |
Description |
|
LCD1U17-05b-cp |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with Cherry keyboard & touchpad mouse in PS2
interface, black |
|
LCD1U17-05g-cp |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with Cherry keyboard & touchpad mouse in PS2
interface,
light gray |
|
LCD1U17-05b-sp |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with Solidtek keyboard & touchpad mouse, in PS2
interface
black |
|
LCD1U17-05g-sp |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with Solidtek keyboard & touchpad mouse in PS2
interface,
light gray |
|
LCD1U17-05b-t |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with keyboard & trackball mouse in PS2
interface, black |
|
LCD1U17-05g-t |
1U Rack-mount 17" LCD
Monitor Keyboard Drawer with keyboard & trackball mouse in PS2
interface, light gray |
|
