General
Information |
|
Form Factor |
1U Rack mounting on slide-out
rails,
Short Depth |
|
Compatibility |
Multi-platform -
Mix PCs, SUNs, IBMs, HPs & DELLs |
|
Support Platform |
MS Windows
3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and
MS DOS |
|
Server Side Interface |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
|
Rack Mounting
|
Adjustable ranges
from 15.3" to 29.1"
(390 to 740mm)
Dimension
Diagram |
|
LCD Screen |
|
LCD Type |
 Samsung
Grade A 19" Industrial
Active Matrix TFT LCD Panel |
|
Display Size |
19 inch diagonal |
|
Resolutions |
1,280 x 1,024 with
60 / 70 / 75Hz |
|
Response time |
Tr
=1.3ms / Tf = 3.7ms |
|
Contrast ratio |
1000
: 1 |
|
Brightness |
300
cd/ m2 |
|
Pixel pitch |
0.294mm (H) x
0.294mm (W) |
|
Panel color |
16.7
million display colors |
|
Viewing angle |
160 / 160 (Horiz.
/ Vert.) |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune, Recall & Language |
|
Signal Input |
VGA, Analog RGB |
|
Optional Video
Input |
S-video &
Composite (RCA) / S-Video & BNC /
DVI-D
More
Details
|
|
LCD MTBF |
50,000 hrs |
|
Keyboard & Pointing Device |
|
Model n / e |
Notebook type KB w/ 2-button Touchpad
|
|
Model
b |
Notebook type KB w/ 3-button mini
Trackball |
|
Model
c |
Cherry type KB w/ 2-button Trackball |
|
|
Keyboard Details
|
|
Power Supply |
|
|
-Remote adapter : 110V - 220 V AC
Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
/
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input |
|
Rear I/O Connector |
|
|
Console port
: HD15 female
DC power input : Plug-round type
|
|
Environmental |
|
Temperature
|
0 to 50 Degree
Celsius (Operation)
-25 to 65 Degree Celsius (Storage) |
|
Relative
Humidity |
90%, non
condensing |
|
Shock
|
50G peak
acceleration
(11ms, half since wave) |
|
Vibration |
58~500Hz/ 0.98G
(11min/ cycle) |
|
Mechanical |
|
Product Dimension |
17.3"(W) x 1.75"(H) x 18.9"(D)
/ 44.2(W) x 4.45(H)x48(D)cm
|
|
Product Weight
|
Approximately
35.2 lbs / 16kg |
|
Relative
Humidity |
90%, non
condensing |
|
Regulatory Approval |
|
|
FCC , CE , VCCI |
|
Optional Accessories & Peripheral
|
|
|
Details
|
|
Package Content
|
|
Package Content |
LCD Monitor drawer x 1 ,
upgradeable
6-ft KVM cable(s), 110 / 220 V DC Power
adapter x 1 , Power cord x 1, Rear
Mounting Bracket x 1 pair,
Fasteners x 4 , User Manual x 1 |
|
|

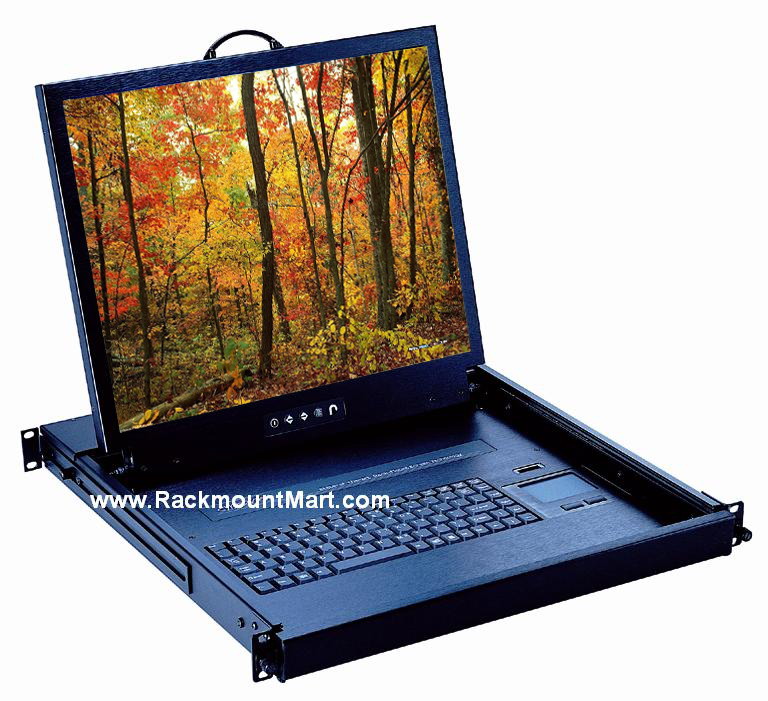

Front View of
LCD1U19-02-n /RKP1419e
*click on
photo for enlarged view
Dimension
*click on above
pictures for enlarged views
Rear View
* click on picture for
enlarged view
User Manual
Free Ground Shipping
*Click
for details
Space saving Flip up design
|
|
Click on the following
photos for more enlarged views :
LCD Drawer & KVM
Benefits :
- Short Depth design of 440mm / 480mm
(17.3" and 18.9" ) only
- Depth will fit 600mm(23.6") rack
application
Features :
- 1U rackmount drawer with SAMSUNG Grade A
19" LCD Panel
- New Built-in Combo
PS/2 & USB interface :
user can have either PS2 or USB input to the LCD by connecting the combo
PS2 & USB interface of the LCD with the respective type of PS/2 or USB
KVM cable / dongle
- Slide rails with fixed
positions to prevent keyboard movement
while typing
- Built in on screen
display controlled by integral membrane switches
, Multi lingual on screen display menu
- Supports AT/XT, PS/2, UNIX, Sun, and
Macintosh computers
- Unique mechanical design
to maximize rack mountable space
- Unique monitor flip-up design allows
viewing through closed glass door of cabinet
- Adjustable mounting brackets for
multiple depth cabinets between 650mm and 1000mm
- Lightweight aluminum construction - with
a black anodize finish
- Front-access lock for security
- Large wrist rest area
- Standard D-sub 15-pin
VGA input connector
- Build in slide rail and
mounts easily in any 19" cabinet
- EMC shielding around the
monitor housing to minimize interference
- Side to side wide-viewing angle as CRT
monitor
- Power saving feature for prolonging life
of LCD Panel
- Built in On Screen Display controlled by
integral membrane switches
- Rear mount bracket included
- All mounting hardware
included
Ordering information :
|
KVM Support |
Keyboard Type |
Part # |
Description |
|
NO KVM |
|
Single Port with Combo PS2 & USB
interface |
Notebook KB w/ Touchpad
|
LCD1U19-02-n / RKP1419e
Price : $1008 |
1U 19"
Samsung Panel w/
Notebook KB & touchpad & 1 x 6-ft 3-in-1 **PS/2 KVM cable |
|
Notebook KB w/
Trackball |
LCD1U19-02-b /
RKP1419b
Price : $1008 |
1U 19"
Samsung Panel w/
Notebook KB & trackball & 1 x 6-ft 3-in-1 **PS/2 KVM cable |
|
Cherry KB w/
Trackball |
LCD1U19-02-c /
RKP1419c
Price : $1083 |
1U 19" Samsung
Panel w/ Cherry KB & trackball & 1 x 6-ft 3-in-1 **PS/2 KVM cable |
|
Notebook KB w/ Touchpad
|
LCD1U19-02-n-u /
RKP1419eu
Price : $1008 |
1U 19"
Samsung Panel w/
Notebook KB & touchpad & 1 x 6-ft 2-in-1 **USB KVM cable |
|
Notebook KB w/
Trackball |
LCD1U19-02-b-u /
RKP1419bu
Price : $1008 |
1U 19"
Samsung Panel w/
Notebook KB & trackball & 1 x 6-ft 2-in-1 **USB KVM cable |
|
Cherry
KB w/ Trackball |
LCD1U19-02-c-u /
RKP1419cu
Price : $1083 |
1U 19"
Samsung Panel w/
Cherry KB & trackball & 1 x 6-ft 2-in-1 ** USB KVM cable |
|
|
