General
Information |
|
Form Factor |
2 U Rack mounting, separate
sliding screen and keyboard |
|
Compatibility |
Multi-platform -
Mix PCs, SUNs, IBMs, HPs &
DELLs |
|
Server Side Interface |
| No
KVM : |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
PS2 KVM : |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
USB KVM : |
HD15 VGA, USB
Type A for
KB/MS |
|
New Combo Interface KVM: |
Either PS2 or
USB by
cable / dongle selection |
|
|
Rack Mounting
|
Adjustable ranges
from 15.3" to 33.2"
(390 to 845mm) |
|
LCD Screen |
|
LCD Type |
 Samsung
Grade A 17" Industrial
TFT LCD Panel |
|
Display Size |
17 inch diagonal |
|
Resolutions |
1,280 x 1,024 with
60 / 70 / 75Hz |
|
Response time |
TR= 2 / Tf=6 ms |
|
Contrast ratio |
700 :
1 |
|
Brightness |
300
cd/ m2 |
|
Pixel pitch |
0.264 (H) x 0.264
(V) mm |
|
Panel color |
16.2
million display colors |
|
Viewing angle |
150 / 135
(L/R/U/D) |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune, Recall & Language |
|
Signal Input |
VGA, Analog RGB |
|
Optional Video
Input |
S-video &
Composite (RCA) / S-Video & BNC /
DVI-D
More Details
 |
|
LCD MTBF |
50,000 hrs |
|
Keyboard & Pointing Device |
|
Model n / e |
Notebook type KB w/ 2-button Touchpad
|
|
Model
b |
Notebook type KB w/ 3-button mini
Trackball |
|
Model
c |
Cherry type KB w/ 2-button Trackball |
|
Model
d |
Compact KB w/ 17-key numeric keypad and
3-button Trackball |
|
Model t |
Compact KB w/ 17-key numeric keypad and
2-button Touchpad |
|
|
Keyboard Details
|
|
New
Integrated High Density CAT.5 KVM Switch Option
|
|
KVM port |
16 port or 32
port |
|
IP
Remote |
TCP/IP access from anywhere
around the
world (with IP KVM) via RJ-45 connection |
|
Cat. 5 Remote |
1000 feet remote
access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection |
|
Cascade Expansion |
Up to 256
ports/servers by 8 level cascade
|
|
Cost efficient
Integrated DB-15 KVM Switch Option |
|
KVM port |
8 port or 16 port
, HD15 female |
|
Port Access |
Channel button or
hot keys selectable |
|
Indicators |
Online (green) and
selected (red) status LED |
|
Cascade Expansion |
Up to 128
ports/servers
|
|
|
PS2
Type Interface
More Details
|
|
IP
Remote |
TCP/IP access from anywhere
around the
world (with IP KVM) |
|
Cat. 5 Remote |
500 feet remote
access by CAT. 5 cable
(with 2-console KVM) |
|
KB/MS Emulation |
PS/2,
with microprocessor support
hot-plugging |
|
Server Side
Interface |
VGA HD15, analog
RGB and 2 x 6-pin mini
DIN |
|
Support Platform |
MS Windows
3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and
MS DOS |
|
KVM cable |
PS/2 cable with 6,
10 & 15 feet option |
|
Cascade cable |
Cable to
PS2 KVM switch w/ 2 & 6 feet option |
|
|
USB
Type Interface
More
Details
|
|
Cat. 5 Remote |
1000 feet remote
access by CAT. 5 cable
(with 2-console KVM) |
|
KB/MS Emulation |
USB 1.1 Compliant,
support hot-plugging |
|
Server Side
Interface |
VGA HD15, analog
RGB, USB type A, support
hot-plugging |
|
Support Platform |
MS Windows
2000/XP, Solaris and SCO Unix |
|
KVM cable |
USB KVM cable
with 6, 10, 15 feet option |
|
Cascade cable |
Cable to
PS2 KVM switch w/ 2 & 6 feet
option |
|
Power Supply |
|
|
-Remote adapter : 110V - 220 V AC
Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
/
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input |
|
|

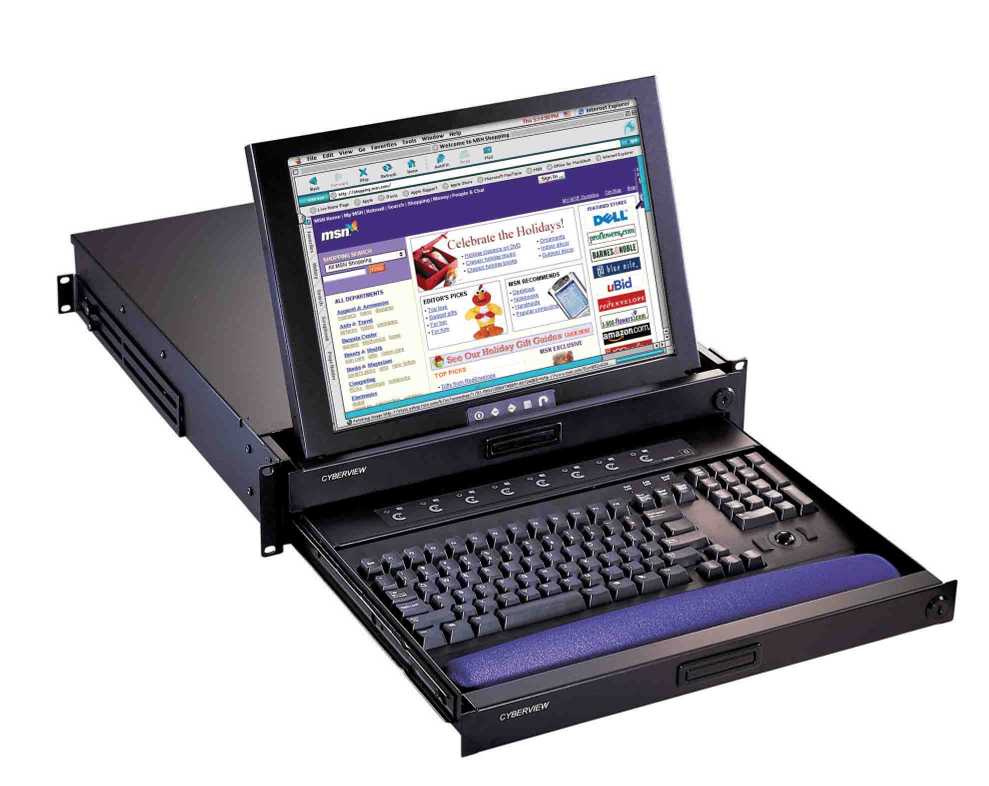

Front
View of LCD2U17-01 / RKP217
*click
on photo for enlarged view

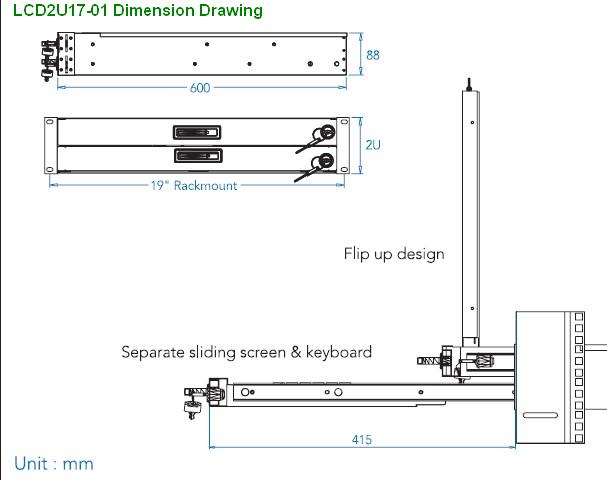

Dimension
Construction
*click on above
picture for enlarged views

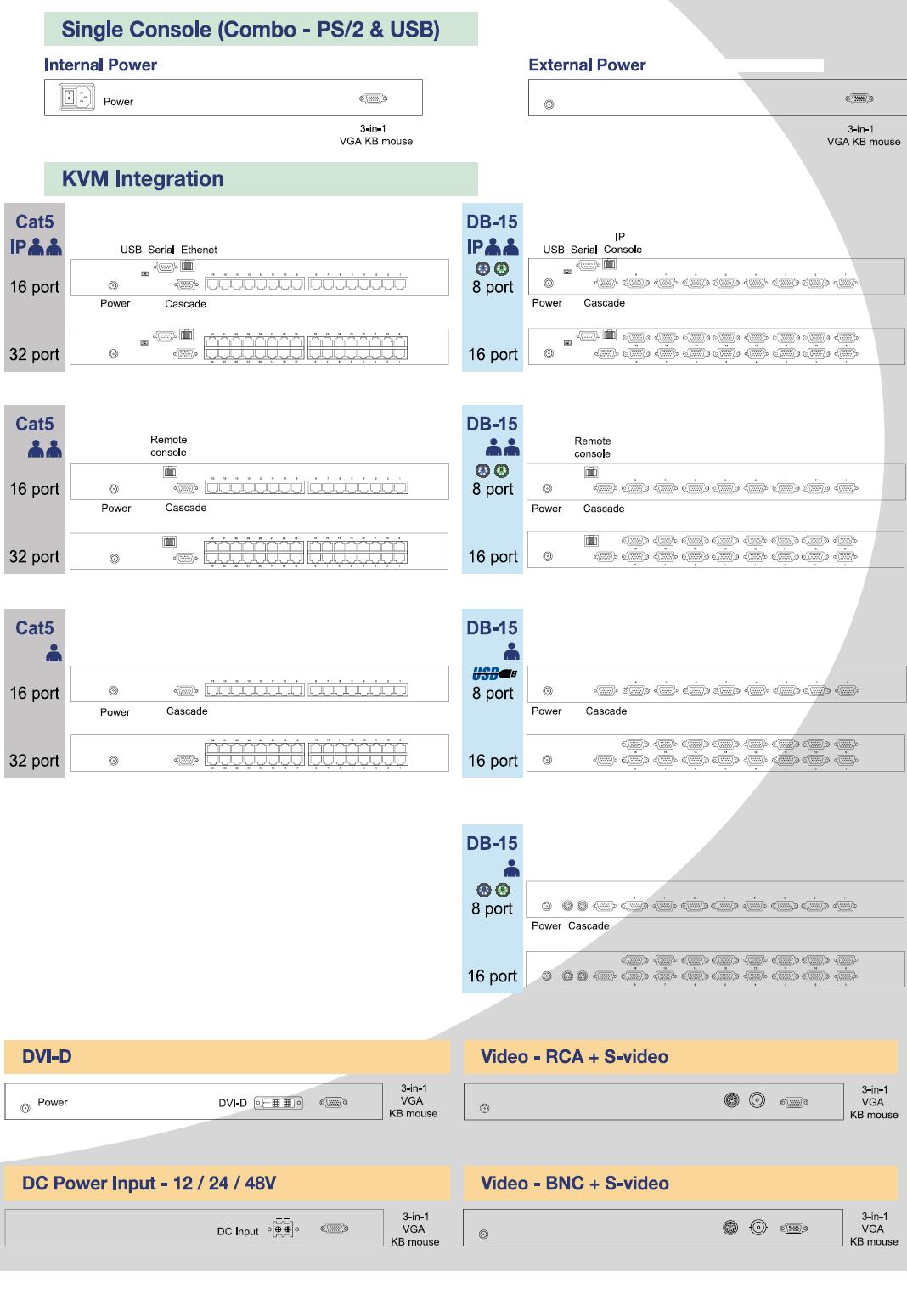

Rear Views for various versions of
LCD2U17-01/
RKP217
*click on above picture for
enlarged view
User Manual
| KVM SUPPORT |
|
| PS/2
, NO KVM |
 |
PS/2, Local Console
KVM |
|
USB,
Local Console
KVM |
|
| PS/2,
Local + Remote Console, DB-15 CAT5 Extender KVM |
|
| PS/2,
Local + IP Console, DB-15 IP Over KVM |
Coming
Soon / For
1U model with KVM Over IP Remote Access, click here
|
| Local
Console, High Density CAT.5 KVM |
|
| Local
+ Remote Console, High Density CAT.5 KVM |
|
| Local
+ IP Console, High Density CAT5 IP KVM |
|
Space saving Flip up design
Free Ground Shipping
*Click
for details
|
|
Rear I/O Connector |
|
Integrated KVM |
|
8 or 16 KVM ports
: |
HD15 female |
|
IP console port : |
RJ45 type (IP KVM model
) |
|
Remote console
port: |
RJ45 type (2-console
model) |
|
Serial port : |
DB9 (IP KVM model) |
|
Virtual Device
port : |
USB type B (IP KVM
model) |
|
PS/2 cascade port
: |
2 Mini DIN & HD15 female |
|
USB cascade port : |
HD15 female |
|
DC power input |
Plug-round
type |
|
|
Without KVM |
|
Console port : |
for VGA PS/2 KB/MS, , HD 15 female |
| DC
power input : |
Plug-round type |
|
|
Environmental
|
|
Temperature
|
0 to 50 Degree
Celsius (Operation)
-25 to 65 Degree Celsius (Storage) |
|
Relative Humidity
|
90%, non condensing |
|
Shock
|
50G peak
acceleration
(11ms, half since wave) |
|
Vibration |
58~500Hz/ 0.98G
(11min/ cycle) |
|
Mechanical |
|
Product
Dimension |
17.4"(W) x 3.46"(H) x 23.62"(D)
44.2(W) x 8.8(H) x 60(D)cm |
|
Product Weight
|
Approximately 41.8
lbs / 19kg |
|
Relative Humidity
|
90%, non condensing |
|
Regulatory Approval |
|
|
FCC , CE , VCCI |
|
Optional Accessories & Peripheral |
|
|
Details
|
|
Package Content |
|
Package
Content |
See user manual of the respective
version listed above |
|
Remarks |
|
|
For SUN Solaris
Compatible version , click this
Link
|
|
