Features :
-
Allows remote access of up to 500 feet away
via CAT. 5, CAT.5e, CAT. 6 UTP cables
- Dual console operation - control your system
from either the local or remote keyboards,
mice, and monitors
- Additional dual version features
- Fully automatic KVM sharing on first-come
first serve basis
- Displays video to both local/remote side
simultaneously
- Compact desktop size
- Plug-n-Play - no software installation
- High video resolution - up to 1,600 x 1,200
- Compatible with Sun Solaris?(with optional
LCD-A1001), Microsoft, Windows, Linux,
Unix and Netware.
Package Content :
- 101-T transmitter x 1
- 101-R receiver x 1
- CA-2 3-in-1 2 feet cable (To PC)
x 1
- DC9V Power adapter (500mA) x 1
- Optional :LCD-A1001
(PS/2 to USB adapter)
|
|
LCDK1019 / CV-101 CAT.5 KVM Extender
includes a transmitter-receiver (101-T/101-R) pair that enables you to
locate a PC in a clean, secure area and access the PC from any convenient,
remote location. The remote user (keyboard, monitor, and mouse), connected
to the receiver, can be up to 500 feet from the PC using Category 5 UPT
cable. In addition to the remote user, a local user (keyboard, monitor, and
mouse) can be connected to the transmitter. Similarly, LCDK1019/ CV-101 can
be used to extend distances between KVM switches, user consoles, and
connected computers.

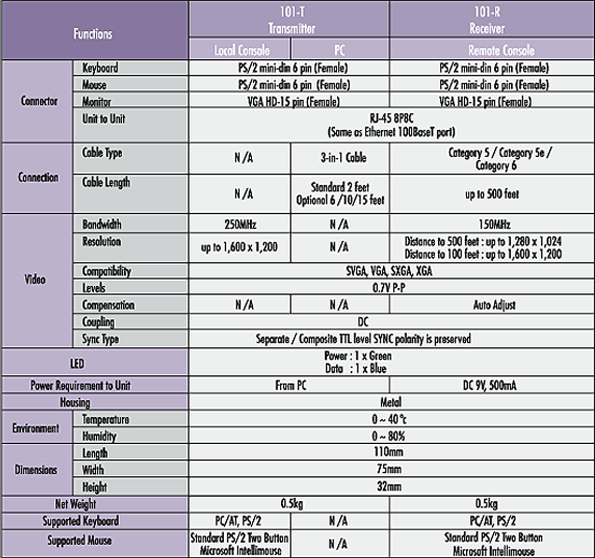

Technical Specification:
APPLICATIONS :
|
General
Application
Before installation, it is recommended
to turn off all of peripherals and computers and follow the easy
procedures to install the unit:
 |
Before connecting to
the PC, make sure that the PC is powered off.
|
 |
Connect 101-T
transmitter to PC, using included CA-2 3-in cable.
|
 |
Connect 101-T
transmitter to 101-R receiver using standard Category 5 cable with
RJ-45 connectors up to 500 feet in length (resolutions up to 1,280 x
1,024) or 100 feet in length (resolutions up to 1,600 x 1,200)
|
 |
Plug the DC adapter
into the 101-R receiver. |
 |
Plug a keyboard, VGA
monitor, and PS/2 mouse into 101-R receiver (and 101-T transmitter
if desired) |
 |
Power in the PC and
VGA monitor and operate. |
|
 |
| |
|
Advanced Application
|
|
