Panel: 10.4" TFT LCD panel
|
Display
Specification |
|
Display Type |
TFT / LCD active
matrix
color |
|
Display Area |
10.4"
Diagonal |
|
Resolutions
|
1024 x 768
|
|
Response time
|
25ms (typ) |
|
Contrast ratio
|
600 : 1 typical
|
|
Brightness
|
190 cd/ m2
|
|
LCD Panel color
|
262K display
colors
|
|
Viewing angle
|
178 ?? (Horiz.) /
178 ??(Vert.)
|
|
Horizontal
Frequency
|
31.5 to 80KHz |
|
Vertical Frequency
|
56 to 75KHz |
|
Surface Treatment
|
Anti-glare / Hard coat |
|
OSD Control: |
Brightness, Contrast, H.position,
V.position, Auto adjust , OSD H &
V Position, Load & Saves Values |
|
Power : |
90-260 VAC , 50/60Hz, 60Watt Max |
|
Keyboard
Specification |
|
Rollover:
|
Alpha N-key Rollover |
|
Auto Repeat
: |
Yes |
|
Self Diagnostic:
|
At power on and system reset |
|
Operating
Voltage : |
+5 VDC +/- 5% |
|
Operating
Current : |
100 mA max |
|
Trackball size : |
16mm
|
|
Touchpad size : |
2.1 " x 1.25" |
|
Buttons :
|
Left & Right , Scroll (touchpad) |
|
Interface
: |
PS/2
|
|
General
Specification |
|
Dimension
: |
19"(W) x 14.5"(D) x 1.75"(H) /
48.26(W)x36.83(D)x4.45(H)cm
|
|
Weight : |
27 lbs |
|
Plug & Play
: |
DDC1 & DDC2B |
|
Operating Temp.:
|
0 to 50 degree Celsius |
|
Storage Temp.:
|
-20 to 60 degree Celsius |
|
Humidity
: |
+5 VDC +/- 5% |
|
Input
Signal
(VGA) : |
R.G.B analog Video, TTL H & V
sync |
|
Input
Connector: |
Display : 15-pin mini D-Shell |
|
Compatibility
with
KVM switch: |
Yes |
|
Optional :
|
-Amplified Stereo Speaker
-Composite Video & S-Video
Input
-USB interface
-Lock
-Retainer |
|
Made in U.S.A.
|
|
|
|

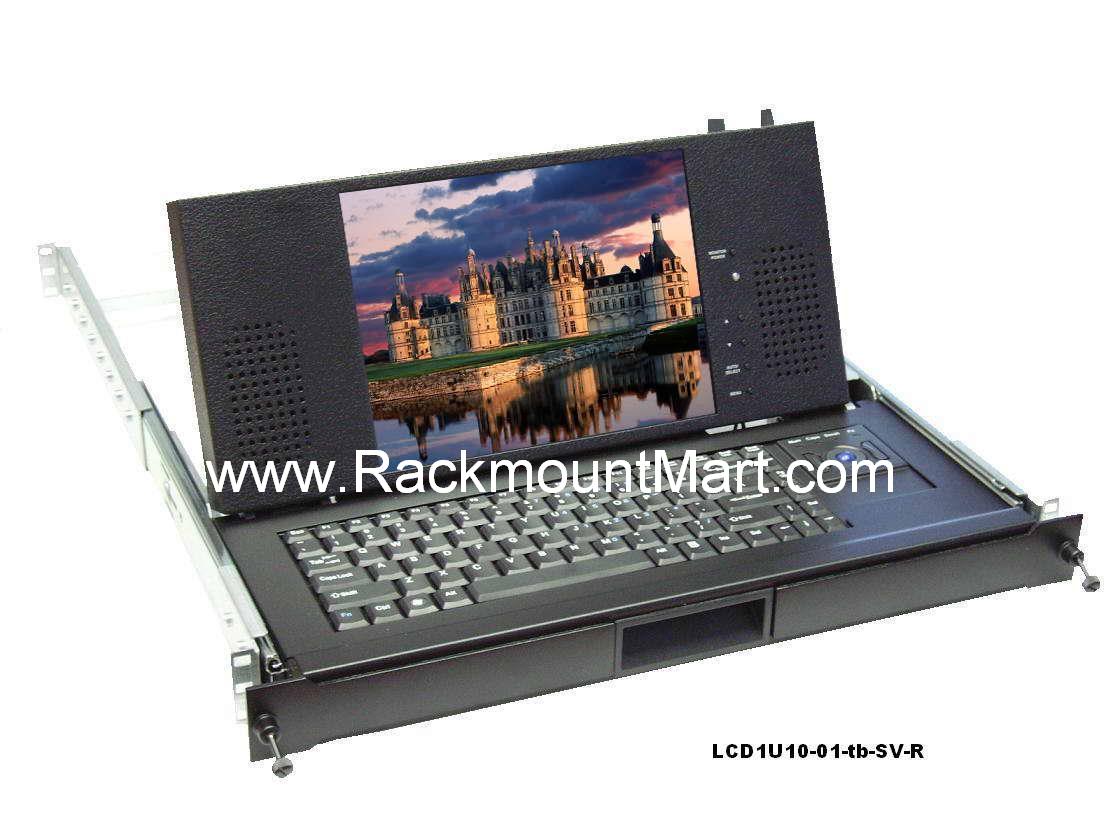

Front View with
Cherry Keyboard and Trackball

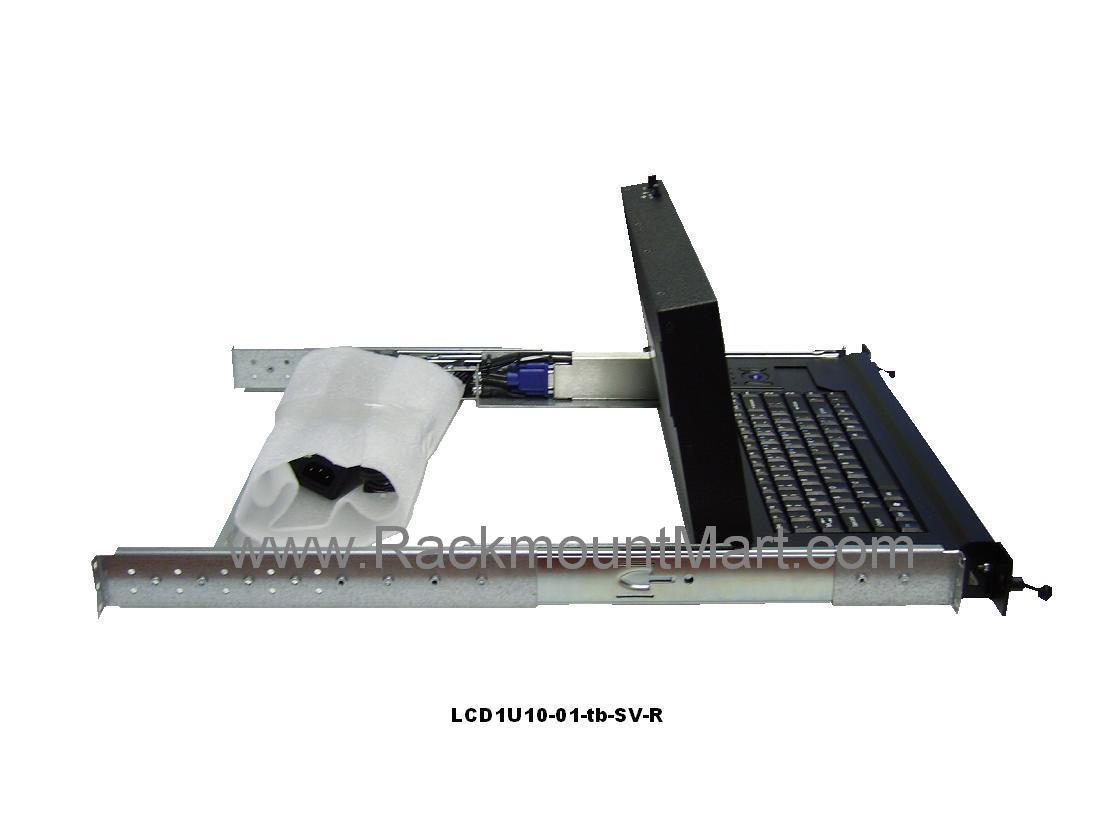

Side View with Cherry Keyboard
and Trackball
*click on photo for enlarged view

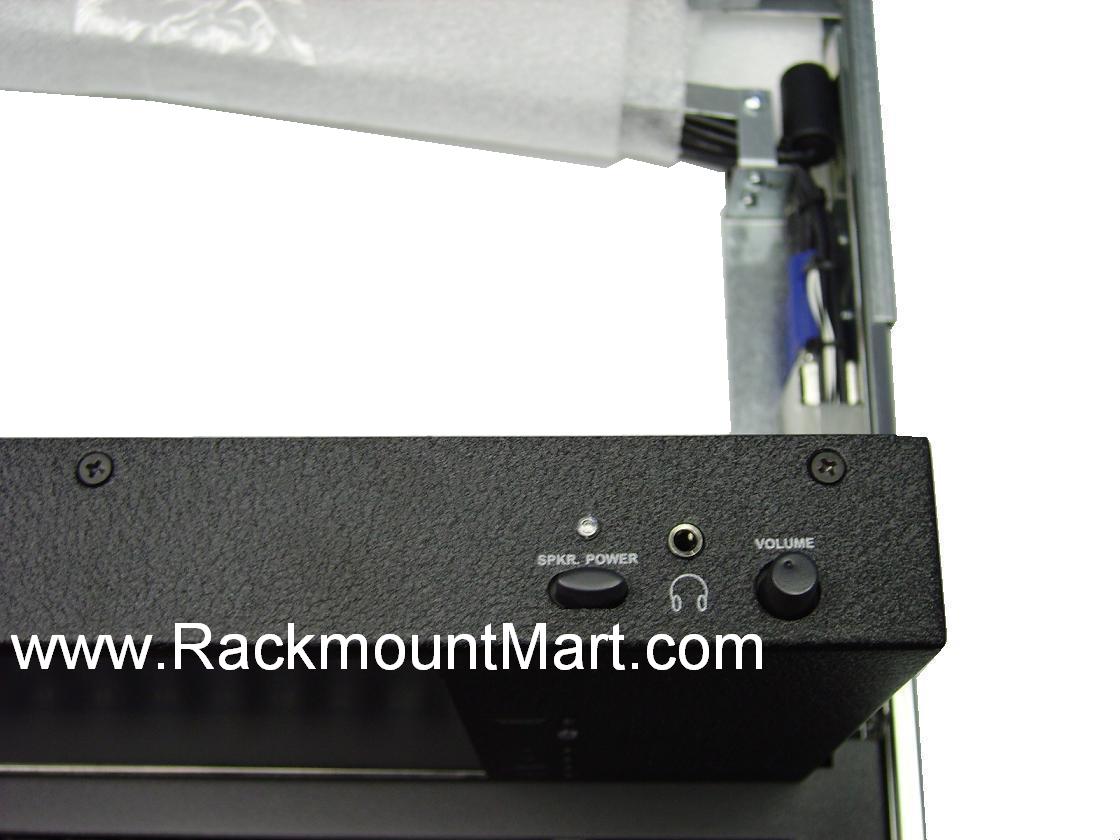

More photos (Click on photos
for enlarged views) :
