New! LCD1U17-16 1U Stylish & Rugged SUN Solaris Compatible Rackmount 17" Samsung LCD Keyboard Drawer Optional 8 / 16 / 32 port DB-15 / RJ-45 KVM / KVM Over IP / or CAT.5 KVM

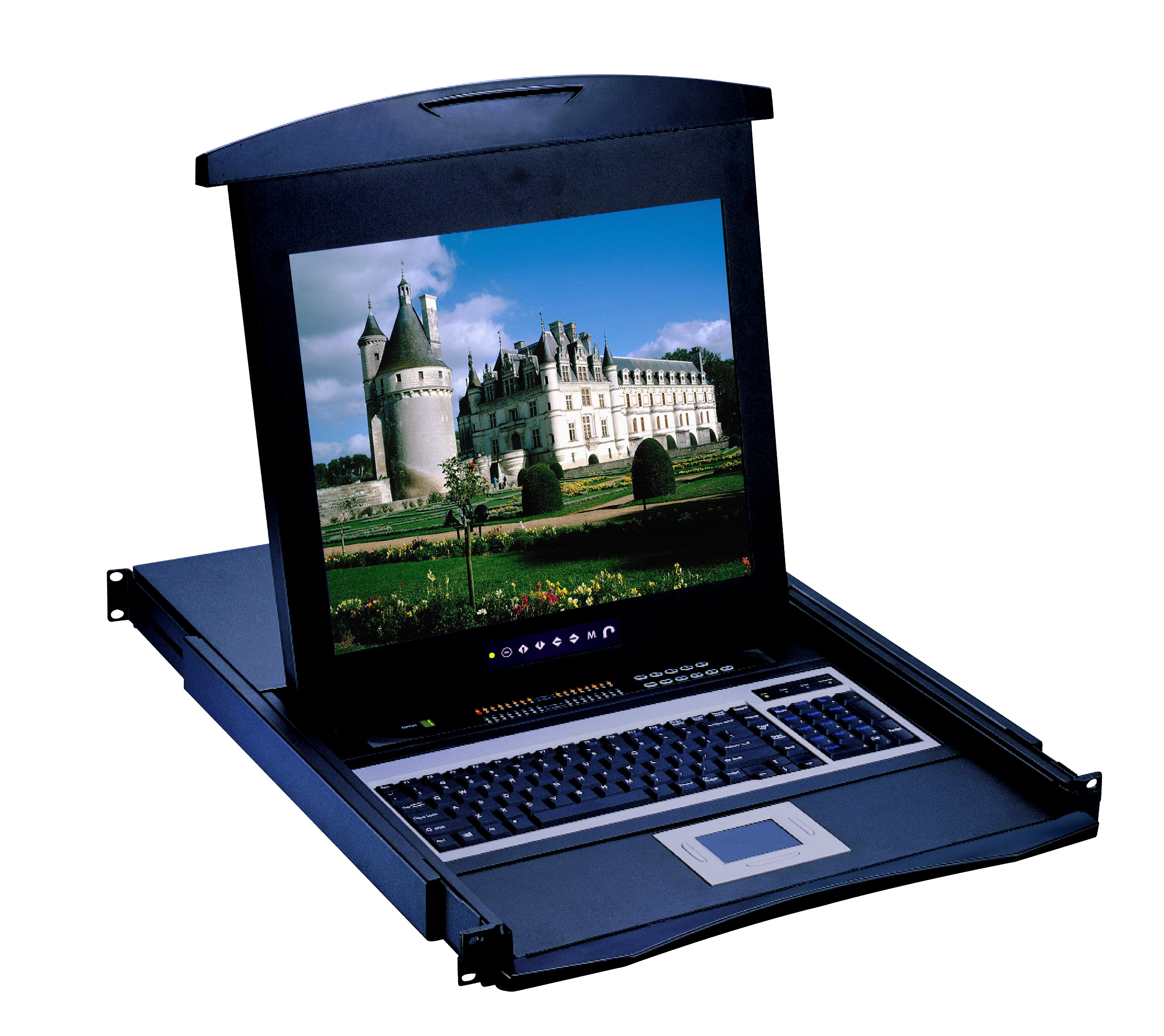

Front View of LCD1U17-16



    *click on photo for enlarged view



       LCD Drawer & KVM Benefits
  • Direct Support for SUN Micro 1152 x 900 Native Resolution
  • Video auto-adjust for optimum image
  • 104 key notepad or trackball keyboard with full numerical pad and SUN Hot Keys
  • High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
  • Cost efficient DB-15KVM integration
  • Stylish Outlook and Rugged design
  • Single or "One Man" installation slides for easy, quick installation
  • Mix PS/2 , USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the web wide web via optional IP console
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Multi lingual on screen display menu

 Special Features :
 1. LCD interchangeable module Kit :
     -17" & 19" LCD Panel interchangeable in the same chassis
     -Samsung Grade A panel
     -Optional Video , DVI and BNC inputs    		 2. KVM  interchangeable module Kit :
     -All KVM models are  interchangeable in the same chassis
     -High density CAT5 KVM are either 16 or 32 ports in 1U of Rack space
      -Mix PS/2  &  USB with multi-Platform switch capability
 3. Keyboard  interchangeable module Kit :
     -Either PS/2 or USB input to the LCD drawer /
      keyboard by cable selection
     -Multiple keyboard language selections with either
      touchpad or trackball
    -104 key notepad keyboard with full numerical pad		  4.  Mouse interchangeable module kit
     -3 button GlidepointTM touchpad or trackball
      interchangeable in same chassis
     -Either PS/2 or USB input to the LCD drawer / keyboard by cable selection

 5. 2-point lock   6. Micro switch for screen auto power off
 7. Single person (One Man ) installation rackmount kit  8. Carry handle to release the 2-pt lock
 9. 7-button LCD OSD membrane with a power LED  10. KVM membrane

              Compatibility with  the following SUN Servers  & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server  - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable

Server Side Interface

HD15 VGA, USB Type A for
KB/MS

Support Platform

Solaris, MS Windows 2000/XP, Linux and
SCO Unix

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen

LCD Type

Samsung Grade A 17" Industrial
              Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution
including 1152 x 900 @66 or 76Hz

Response time

Tr=2 / Tf=6 ms

Contrast ratio

700 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

150 / 135 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Color, H. position,
V.position, Phase, Scaling, Auto config ,
Input Select, Mulit window, Clear EERRom
OSD adjust, Save

Signal Input

VGA, Analog RGB

LCD MTBF

50,000 hrs
                                     Keyboard & Pointing Device


-Either touchpad or trackball
-With Numeric keypad
-Incorporate SUN keys including Stop, Cut,
Paste, Compose, Copy and Help
-US layout version only

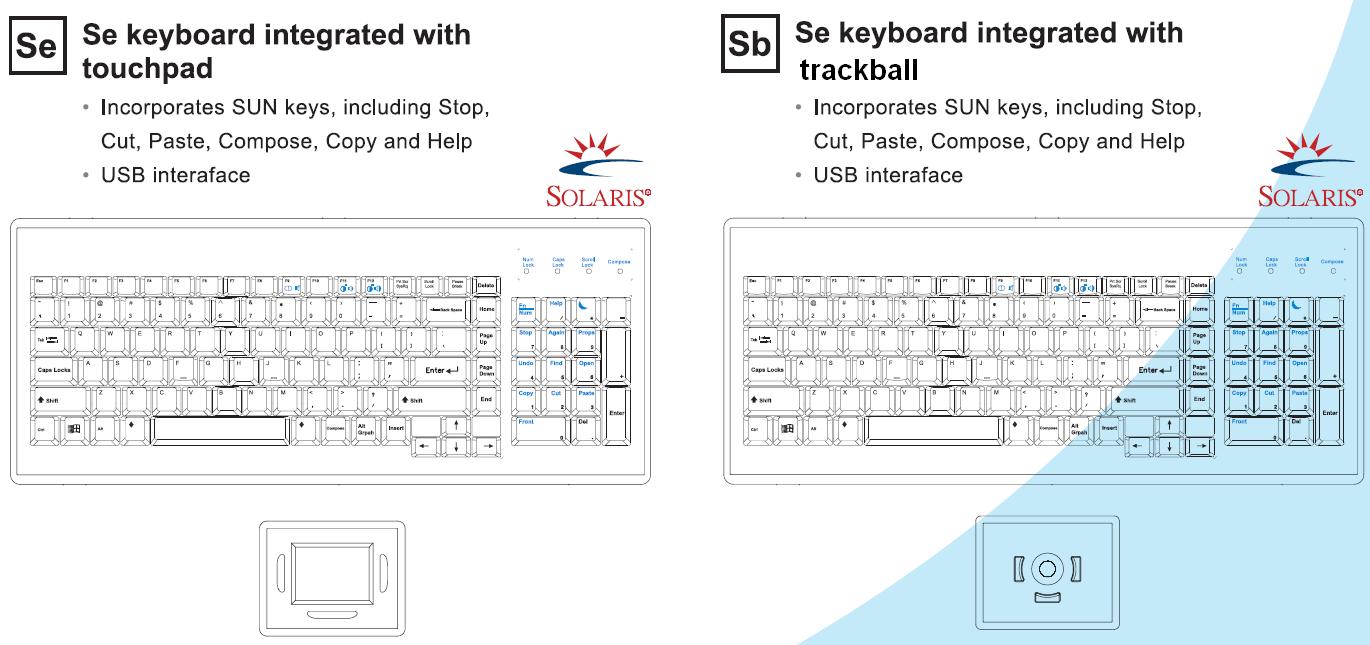

                                   Keyboard Details

       New  Integrated High Density CAT.5  KVM Switch Option

KVM port

 16 port or 32 port


IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via  RJ-45 connection


Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via  RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade




                                           More Details

      Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers




 USB Type Interface        More Details


Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

 VGA HD15, analog RGB, USB type A,
support
 hot-plugging

Support Platform

 MS Windows 2000/XP, Solaris and SCO
Unix

KVM cable

 USB KVM cable with 6, 10, 15 feet option

Cascade cable

 Cable to PS2 KVM switch w/ 2 & 6 feet
 option
                                Power Supply



 Internal Power Supply : 110V - 220 V AC
Input ,  12V 5A Output
                                 Rear I/O Connector
Integrated KVM
8 or 16 KVM ports :  HD15 female
IP console port  :  RJ45 type (IP KVM model )
Remote console port:  RJ45 type (2-console model)
Serial port   :  DB9 (IP KVM model)
Virtual Device port :  USB type B (IP  KVM model)
USB cascade port :  HD15 female
DC power input  Plug-round type

Without KVM
Console port  :  HD 15 female
DC power input : Plug-round type
                                  Mechanical

Product Dimension

17.4"(W) x 1.73"(H) x 25.6"(D) /
 44.2(W) x 4.4(H) x 65(D)cm

Product Weight  Approximately 35 lbs / 16kg
Relative Humidity  90%, non condensing

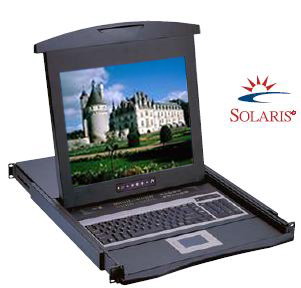

  Front View of LCD1U17-16

               *click on photo for enlarged view





     Dimension



      *click on above pictures for enlarged view

 Rear Views for various versions of LCD1U17-16



       *click on above picture for enlarged view

   User Manual

  KVM SUPPORT
USB, No KVM
USB, Local console KVM
Local Console, High Density CAT.5  KVM
Local + Remote Console, High Density CAT.5  KVM
Local + IP Console, High Density CAT5  IP KVM

 Space saving Flip up design

      Free Ground Shipping *Click for details



                              Regulatory Approval
           FCC , CE , VCCI
                       Optional Accessories & Peripheral



 Details

                             Package Content

Package Content

See user manual of the respective version listed above

Features :

  • Single or "One Man" installation slides for easy, quick installation
  • Stylish and Rugged design
  • 1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
  • SAMSUNG 17" Grade A LCD Panel
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server
  • Sun Compatible keyboard with either touchpad or trackball, and numeric keypad and  SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY  Keyboard Details->
  • Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of  24" to 36"
  • Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
  • Unique mechanical design to maximize rack mountable space
  • Anodized aluminum front panel
  • Sliding rails will self-lock when pulled all the way out
  • Built in on screen display controlled by integral membrane switches
  • Built-in thumb screws securing the machine when it is folded or pushed all the way in
  • Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
  • Power saving feature for prolonging the lift of LCD panel
  • Standard D-sub 15-pin VGA input connector
  • 12V 5A remote power adapter (Single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Optional :  12V/24V/  48V DC Power Input
                                           Integrated wiith Standard DB-15 KVM Switch Only

              Cost efficient DB-15 KVM OPTIONS -  with either 8 or 16  ports , cascade up to 128 servers

Local Console DB-15 USB KVM Switch :
       8 Port KVM - LCDK1020 / CV-S801 Details
     16 Port KVM - LCDK1021/ CV-S1601 Details

                                                  Integrated with New High Density CAT.5 KVM Switch Only

         New High Density RJ-45 CAT5 KVM OPTIONS -  with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch :
        16 Port KVM - LCDK1043/ U-1601 Details
        32 Port KVM - LCDK1044/ U-3201 Details 		 Local + Remote Console High Density CAT.5 KVM Switch :
               16 Port KVM - LCDK1045 / U-1602 Details
              32 Port KVM - LCDK1046 / U-3202 Details
   Local + IP Console High Density CAT.5  IP KVM Switch :
               16 Port KVM - LCDK1047 / UIP-1602 Details
              32 Port KVM - LCDK1048 / UIP-3202 Details



     Optional Accessories
 Optional Video input
   -S-Vdieo + Composite Video / DVI-D / BNC
                  Details 		48V / 24V / 12V DC Power
   Input Range          : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

                        Details
 USB KVM  Cables & Cascade Cables in various
 length
                                      Details    		 USB Dongles & CAT5 Cables in various
 length

             Details
 New Options
 - Speaker                                    - Front Panel
 - Internal Power Supply           - Micro Switch
 - LCD Membrane
                                 *** Please contact us for details



ORDERING INFORMATION :

 KVM Support  Keyboard Type Part # Description
 NO KVM ( Single Port )
Single Port SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-n
Price : $1091		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad Keyboard & numeric keyboard +  1 set of one 6-ft long all-in-one USB  KVM cable included
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-b
Price : $1091		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard & numeric keyboard +  1 set of one 6-ft long all-in-one USB  KVM cable included
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
                                                  DB-15 KVM ( Local console  DB-15 KVM)
Local consoleDB-15
8 Port   KVM Switch		 SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-8KVM-n
Price: $1500		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad Keyboard  and DB-15 8 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-8KVM-b
Price: $1500		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard  and DB-15 8 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
Local consoleDB-15
16 Port   KVM Switch		 SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-16KVM-n
Price: $1720		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad Keyboard  and DB-15 16 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-16KVM-b
Price: $1720		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard  and DB-15 16 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
                                                 High Density CAT5  KVM ( Local console  High Density CAT5 KVM)
Local console High Density 16 Port  CAT5 KVM Switch SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM-n
Price: $1576		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard  and Local console High density 16 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM-b
Price: $1576		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard  and Local console High density 16 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
Local console High Density 32 Port  CAT5 KVM Switch SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM-n
Price: $1833		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard  and Local console High density 32 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM-b
Price: $1833		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard  and Local console High density 32 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
 2 Console KVM (  Local & Remote Console ,  16 / 32 port KVM)
                                                High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )

Local & Remote consoles - 16 Port  High Density CAT5 KVM Switch



 SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM2-n
Price: $1803		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard   & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM switch (*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM2-b
Price: $1803		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard   & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM switch (*USB Dongles are optional  Details-> )

Local & Remote consoles - 32 Port  High Density CAT5 KVM Switch



 SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM2-n
Price: $2015		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard   & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM switch (*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM2-b
Price: $2015		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball Keyboard   & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM switch (*USB Dongles are optional  Details-> )
Local & IP consoles - 16 Port  High Density CAT5 KVM Via IP Switch SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM2IP-n
Price:$2076		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard   & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM Over IP switch (*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U16KVM2IP-b
Price:$2076		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball  Keyboard  & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM Over IP switch (*USB Dongles are optional  Details-> )
Local & IP consoles - 32 Port  High Density CAT5 KVM Via IP Switch





 SUN compatible KB w/ TOUCHPAD , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM2IP-n
Price:$2288		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Touchpad  Keyboard & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM Over IP switch (*USB Dongles are optional  Details-> )
SUN compatible KB w/ TRACKBALL , SUN Hot keys & Numeric Keypad LCD1U17-16-U32KVM2IP-b
Price:$2288		 Stylish 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible Trackball  Keyboard  & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM Over IP switch (*USB Dongles are optional  Details-> )








Availability: Usually ships in 2-3 business days.

LCD1U17-16padRegular price: $1,394.00padSale price: $1,091.00pad


MODEL:
Single ( local ) Console : Single Port ( No KVM ):

Single ( local ) Console : DB-15 8 or 16 port KVM Switch :

Single ( local ) Console : High Density 16 or 32 port RJ-45 CAT.5 KVM Switch :

2 Consoles (Local + Remote) : High Density 16 or 32 port RJ-45 Cat.5 KVM Switch :

2 Consoles (Local + Remote) : High Density 16 or 32 port RJ-45 Cat.5 KVM Over IP Switch :


OPTIONAL FEATURES
Composite Video & S-Video :

S-Video & BNC :

DVI-D Input :

DC Input Power Adapter:


ACCESSORIES
USB Dongle for use w/ High Density RJ-45 CAT.5 KVM or High Density Cat.5 KVM Via IP switch :


KVM CABLE UPGRADE
Upgrade 6 ft USB KVM cable to 10-ft:
Upgrade 6-ft USB KVM cable to 15-ft:




     For more information, please visit our company web site at
    http://www.rackmountmart.com/



Prices and availability subject to change without notice. Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.



 Copyright © 2002-2008 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
