LCD1U17-09 / RKP7 1U Rackmount 17" Samsung LCD Keyboard Drawer w/ Real Mini Optical Mouse Optional 8 / 16 / 32 port DB-15 / RJ-45 KVM / CAT.5 KVM / CAT.5 KVM Over IP w/ Combo PS2 & USB input

                 1U Rackmount 17" SAMSUNG TFT LCD Monitor Keyboard Drawer with mini Optical Mouse
                     Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
New Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access
                                    **** New Built-in Combo PS/2 & USB interface for selected versions ****

General Information

Form Factor

1U Rack mounting on slide-out rails,
with real mouse

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs &
DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
New Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 34.6"
(390 to 880mm)

LCD Screen

LCD Type

Samsung Grade A 17" Industrial
Active Matrix TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=2 / Tf=6 ms

Contrast ratio

700 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

150 / 135 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Keyboard

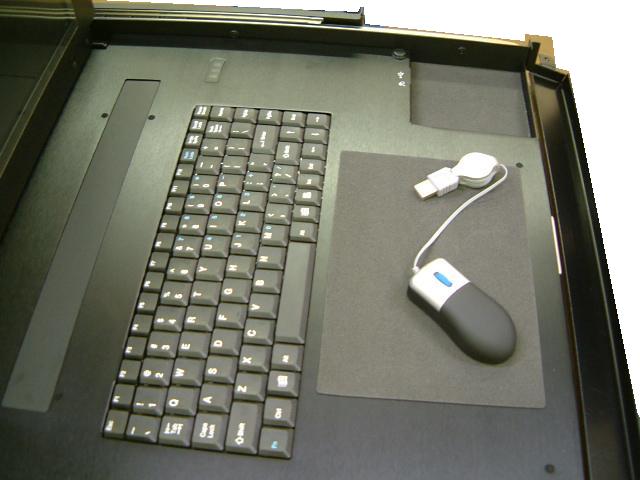

Full size 88/ 89-key notebook type keyboard
with Real Mini Optical Mouse

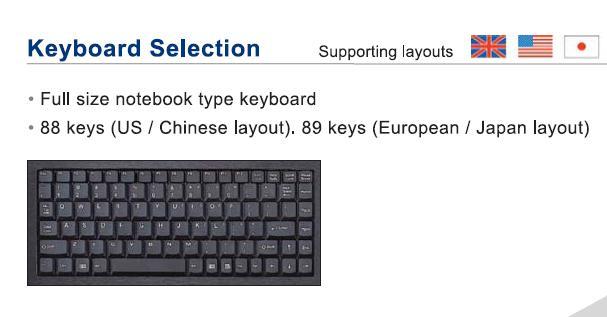

Keyboard Details

New Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

Without KVM

Console port :	for VGA PS/2 KB/MS, , HD 15 female
DC power input :	Plug-round type

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

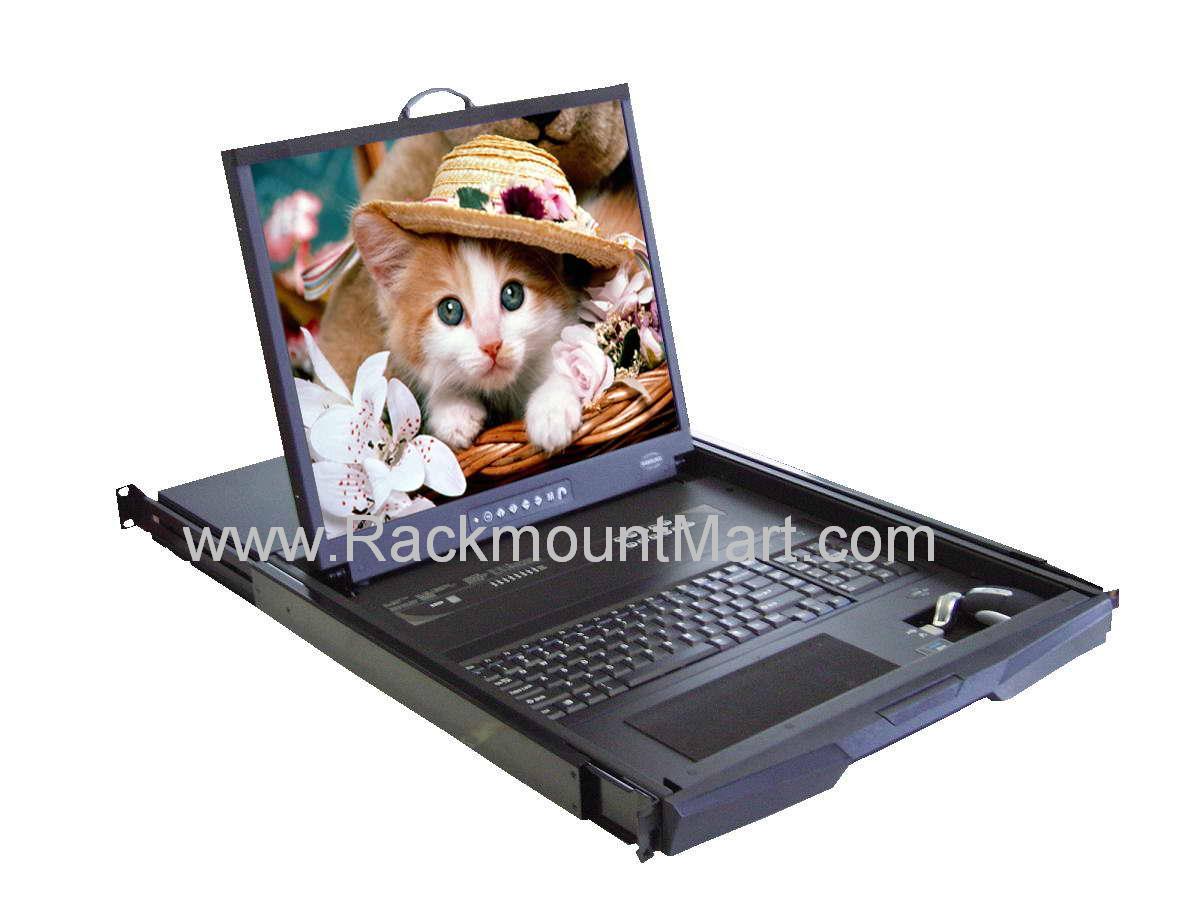

Side View

*click on photo for enlarged view

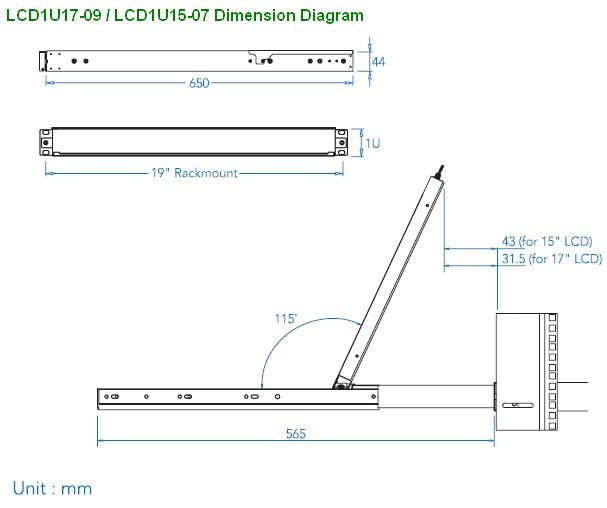

Dimension

*click on above pictures for enlarged views

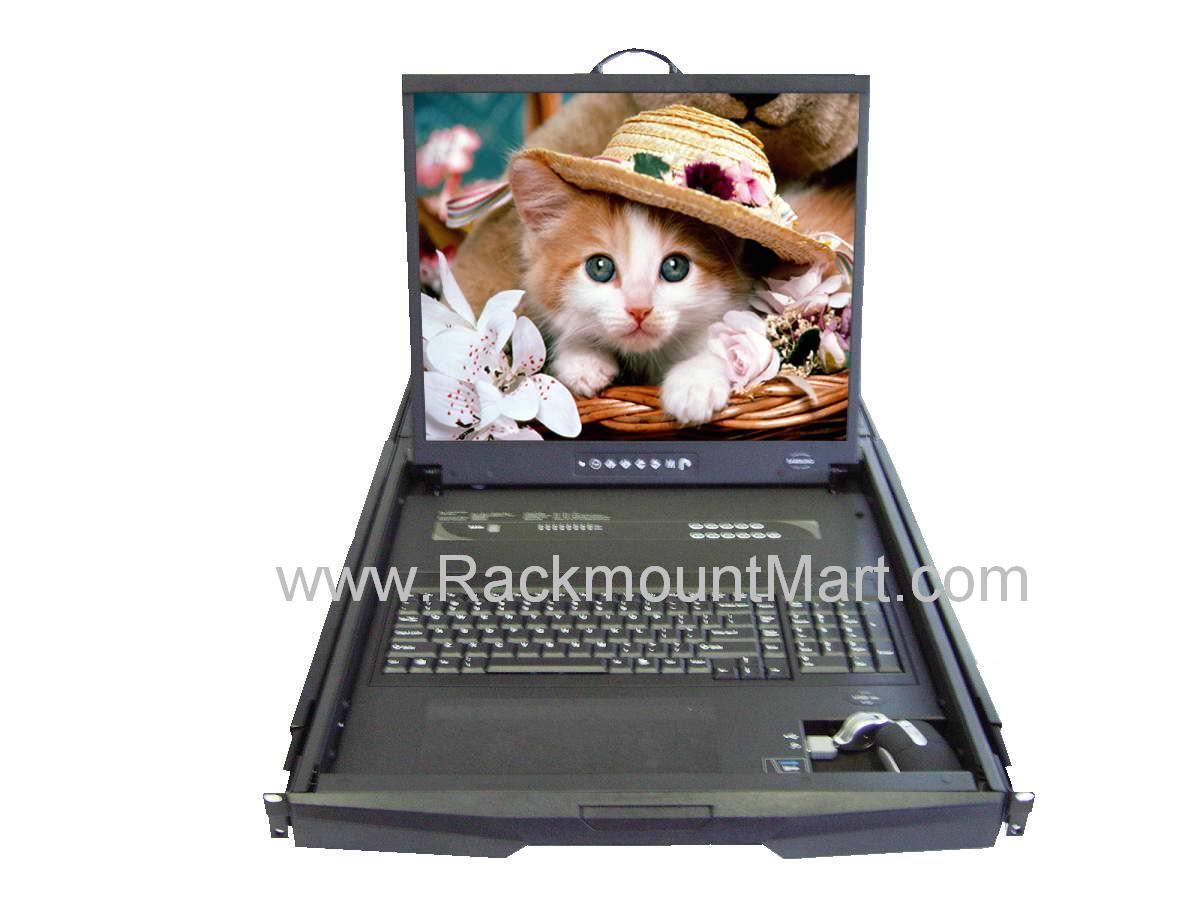

Front View

*click on photo for enlarged view

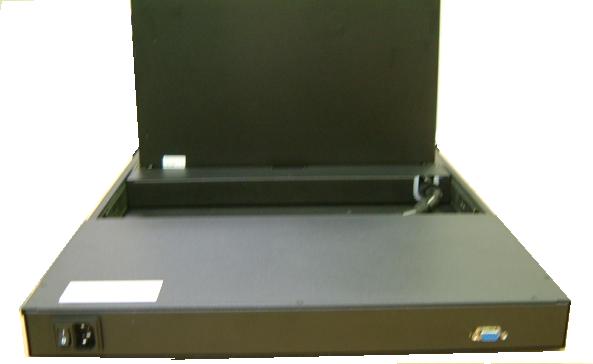

Rear Views for various versions of LCD1U17-09/
RKP7



       *click on above picture for enlarged view

User Manual

KVM SUPPORT
PS/2 , NO KVM
PS/2 , KVM w/ 1 Console
PS/2 , KVM w/ 2 Consoles
USB , NO KVM
USB , KVM w/ 1 Console
Local Console, High Density CAT.5 KVM
Local + Remote Console, High Density CAT.5 KVM
Local + IP Console, High Density CAT5 IP KVM

Drawing

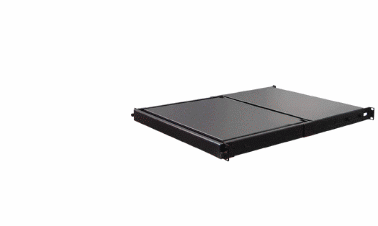

Space saving Flip up design

Free Ground Shipping *Click for details
Mechanical
Product Dimension	17.4"(W) x 1.75"(H) x 26.5"(D) / 44.2(W) x 4.45(H)x65(D)cm
Product Weight	Approximately 37.4 lbs / 17kg
Relative Humidity	90%, non condensing
Regulatory Approval
	FCC , CE , VCCI
Optional Accessories & Peripheral
	Details
Package Content
Package Content	See user manual of the respective version listed above

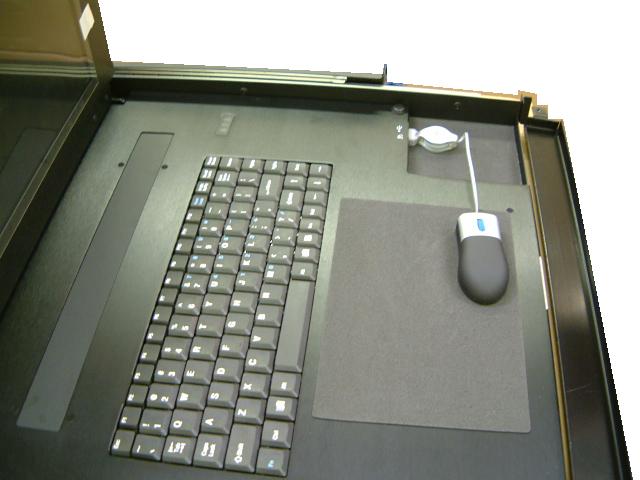

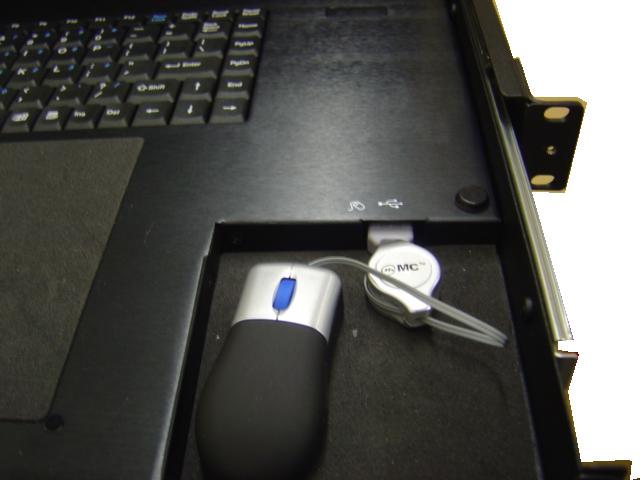

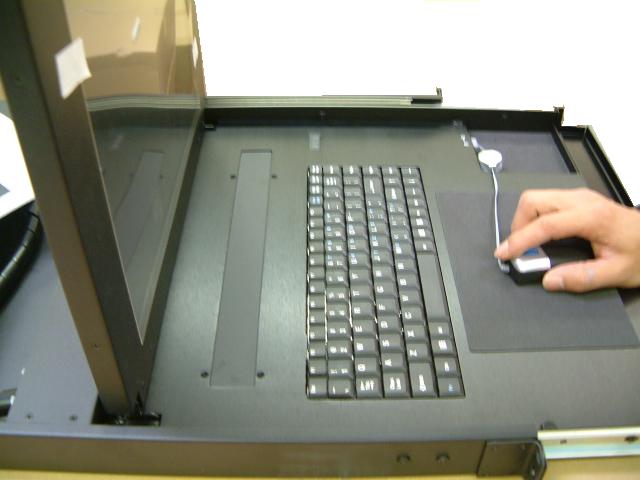

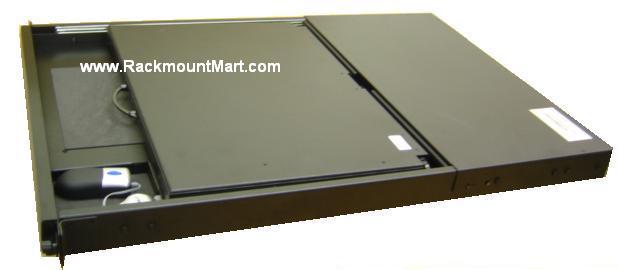

More photos (Click on the photos for enlarged views)

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
New Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Adjustable mounting bracket which is suitable for 24" to 36" deep Cabinet Rack
Built in on screen display controlled by integral membrane switches :
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
Build in slide rail and mounts easily in any 19" cabinet
All mounting hardware included
Mini Optical Mouse with USB connector included
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 / CV-801 Details 16 Port KVM - LCDK1011 / CV-1601 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 / CV-802 Details 16 Port KVM - LCDK1025 / CV-1602 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 / CV-S801 Details 16 Port KVM - LCDK1021/ CV-S1601 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023/ CV-S1602 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 / IP-802 Details 16 Port KVM - LCDK1039 / IP-1602 Details

Integrated with New High Density CAT.5 KVM Switch Only

New High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

Details

Local Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

Touch Screen

Details

Local + Remote Console DB-15 PS2 KVM switch
- 8 Port / 16 Port Details

PS/2 or USB KVM Cables & Cascade Cables in various
length

Details

Local + Remote Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

PS/2 or USB Dongles & CAT5 Cables in various
length

Details

Local + IP Console DB-15 IP Over KVM switch
- 8 Port / 16 Port Details

New Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane
                               *** Please contact us for details

New Local Console High Density CAT.5 KVM switch
- 16 Port / 32 Port

16 Port KVM - LCDK1043/ U-1601 Details
32 Port KVM - LCDK1044/ U-3201 Details

    LCD-A1001 PS2 to SUN /iMac USB adapter
Converting PS/2 to USB with SUN translating special keys stroke

Details

New Local + Remote Console High Density CAT.5 KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1045 / U-1602 Details
32 Port KVM - LCDK1046 / U-3202 Details

CAT.5 PS2 KVM Extender

Details

CAT5 USB KVM Extender

Details

PS2 KVM Over IP Extender

Details

New Local + IP Console High Density CAT.5 IP KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1047 / UIP-1602 Details
32 Port KVM - LCDK1048 / UIP-3202 Details

Ordering information :

KVM Support	Keyboard Type	Part #	Description
NO KVM ( Single Port ) with Built-in Combo PS2 & USB interface**
Single Port for DB-15 PS2 connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ Touchpad	LCD1U17-09-n / RKP7e Price : $1123	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 1 x 6-ft 3-in-1 PS2 KVM cable
Single Port for DB-15 USB connection with built-in *Combo PS2 / USB* Interface	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-n-u / RKP7eu Price: $1123	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 1 x 6-ft 2-in-1 USB KVM cable
Single Console KVM ( Local console, 8 / 16 / 32 port KVM )
DB-15 KVM ( Local console DB-15 KVM)
Local console DB-15 8 Port PS2 KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-8KVM-n / RKP7-801e Price: $1423	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15 16 Port PS2 KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-16KVM-n / RKP7-1601e Price: $1654	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15 8 Port USB KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-8KVM-n-u / RKP7-S801e Price: $1515	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 8 port USB KVM switch & 8 x 6-ft 2-in-1 USB KVM cable
Local console DB-15 16 Port USB KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-16KVM-n-u / RKP7-S1601e Price: $1754	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port USB KVM switch & Local Console 16 x 6-ft 2-in-1 USB KVM cable
High Density CAT5 KVM ( Local console CAT5 KVM) with Built-in Combo PS2 & USB interface**
Local console High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-U16KVM-n / RKP7-U1601e Price: $1486	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
Local console High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-U32KVM-n / RKP7-U3201e Price: $1736	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (PS2 /USB Dongles are optional Details*-> )
2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )
2 Consoles ( Local + Remote console ) DB-15 8 Port PS2 KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-8KVM2-n/ RKP7-802e Price: $1731	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + Remote Console CAT5 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable
2 Consoles ( Local + Remote console ) DB-15 16 Port PS2 KVM Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-16KVM2-n/ RKP7-1602e Price:$1938	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + Remote Console CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable
2 Consoles ( Local + IP console ) DB-15 8 Port PS2 KVM Over IP Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-8KVM2IP-n/ RKP7-IP802e Price:$2108	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + IP Console 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 3-in-1 PS2 KVM cable
2 Consoles ( Local + IP console ) DB-15 16 Port PS2 KVM Over IP Switch	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-16KVM2IP-n/ RKP7-IP1602e Price:$2323	1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + IP Console 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 3-in-1 PS2 KVM cable
High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM ) with Built-in Combo PS2 & USB interface**
2 Consoles ( Local + Remote console ) High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface	Notebook KB w/ touchpad & Real Mini Mouse	LCD1U17-09-U16KVM2-n/ RKP7-U
