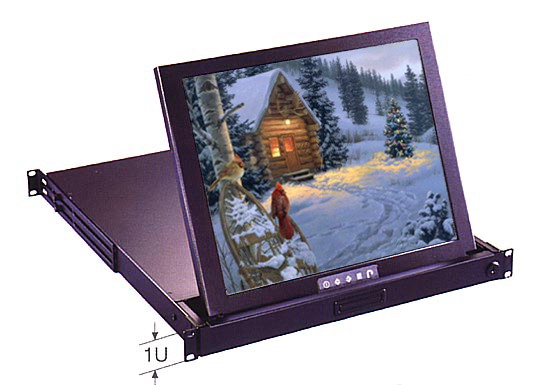

1 U SHORT DEPTH Rack mount
17" TFT LCD Monitor Drawer
Only
17.3" / 440mm Deep, fits 23.6" / 600mm deep cabinet
Panel :
SAMSUNG
17" LCD Panel
|
Display type
|
TFT / LCD active
matrix color
|
|
Resolutions
|
1280 x 1024
|
|
Display Area
|
337.92(H) x 270.34(V) mm |
|
Response time
|
Tr =2ms / Tf =6ms
(Typ.) |
|
Contrast ratio
|
700
: 1 |
|
Brightness
|
300
cd/ m2 typical
|
|
Pixel pitch
|
0.264(H) x 0.264(W) mm |
|
Panel color
|
16.2 million display
colors
|
|
LCD MBTD |
50,000 hrs |
|
Viewing angle
|
150º (Horiz.) / 135º
(Vert.) |
|
OSD Control :
|
Brightness, Contrast, Phase & Clock, Color, H & V Position,Auto-tune,
Recall & Language |
|
Options :
|
DVI , BNC,
S-Video & Composite Video |
|
Dimension:
|
17.4"(W) x 1.74" (H) x
17.32"(D) / 44.2(W) x 4.45(H) x
44(D)cm |
|
Storage temp.
|
-25ºC to 60ºC
|
|
Operating temp.
|
0ºC to 50ºC
|
|
Safety Approval
|
FCC CE VCCI |
|
Optional Accessories & Peripheral
|
Details
|
|
Package Content |
LCD Monitor drawer x 1 , 6-ft VGA
cable x 1, 110 / 220 V DC Power adapter x 1 , Power cord x 1, Key
for front lock x 2, User Manual x 1 |
|
|
|
FEATURES :
- SAMSUNG LCD Panel
- Supports Windows , Sun, Linux, Apple,
IBM, HP , UNIX and Macintosh computers
- Unique mechanical design
to maximize rack mountable space
- Unique monitor flip up
design allows viewing through closed glass door of cabinet
- Adjustable mounting
brackets from 390mm to 680mm
- Lightweight aluminum
construction - with a black anodize finish
- Side to side wide-angle
viewing as CRT monitor
- Slide away flip-up monitor
- Slide rails have fixed position to
prevent movement of the screen
- Built in on screen
display controlled by integral membrane switches
- Power saving feature for
prolonging the life of LCD panel
- Standard D-sub 15-pin
VGA input connector
- Front-access lock for
security
- Supplied with 12V 5A remote power
adapter (single power source)
- EMC shielding around the
monitor housing to minimize interference
- All mounting hardware included
- One 6 ft VGA Cable included
POWER SUPPLY:
- Adapter Size :
4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
- Cable length from mains plug to adapter
: 6ft / 182cm
- Cable length from adapter to unit : 6ft
/ 180cm
- Safety approval : FCC CE
- Mains plug options available
- Optional - power adaptor 48V or 24V DC
input available
Ordering
information
|
Part Number |
Description |
|
LCD1U17-013 / RP1417
Price : $682 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer, one
6-ft long VGA cable included |
|
LCD1U17-013-av / RP1417AV
Price : $788 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video , one 6-ft long VGA cable included |
|
LCD1U17-013-bnc / RP1417BNC
Price : $788 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with BNC
(bayonet Neill- Concelman) connector & S-Video , one 6-ft long VGA
cable included |
|
LCD1U17-013-dvi/ RP1417DVI
Price : $788 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with DVI
, one 6-ft long VGA cable included |
|
LCD1U17-013-av-dvi / RP1417AV-DVI
Price : $894 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video and DVI , one 6-ft long VGA cable included |
|
LCD1U17-013-bnc-dvi / RP1417BNC-DVI
Price : $894 |
Short Depth 1U Rack-mount 17" SAMSUNG TFT LCD Monitor Drawer with BNC
and DVI , one 6-ft long VGA cable included |
|
|
