RM3010 3U Rackmount Chassis 6 x 5.25" + 2 x 3.5" + 1 x 3.5" bays optional P.S.

Material: Heavy-duty cold-rolled steel with bright chromate finishing
Dimension: 19" (W) x 25.6" (D) x 5.25" (H)
Cooling: 3x90 ball-bearing fans + 2x60 ball-bearing fans
PCI Extension: 7 Full length slots with maximum 3.9" in height
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power & HDD LED's
System Boards: 12" (W) x 13" (D) ATX M/B
Speaker: 0.4W built-in
Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x1" internal HDD
Temperature: 0 °C(32 F) - 50 °C(122 F)
Humidity: 5% - 95% non-condensing

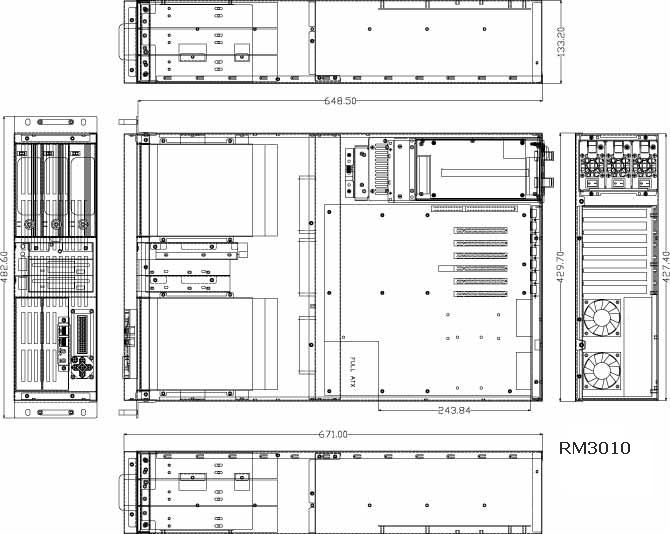

*Click here for Engineering Drawing

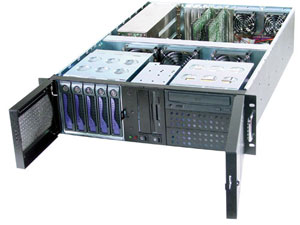

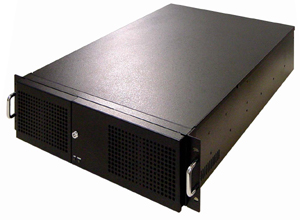

More photos - (click on the pictures to enlarge)

FEATURES: Basic 3U Rackmount Chassis for ATX motherboards. It includes 6x5.25" bays, 2x3.5" bays, 1x1" HDD bay, and 5 ball-bearing fans push the air to cool the chassis. In the back, it features 7 full-height expansion slots for additional customization, and the front has a split cover to protect the drives from accidental tampering.

APPLICATIONS:
General-Purpose Server / File Server / Graphics Workstation /RAID box
Firewall / Data Storage

BENEFITS: This 3U gives all the space necessary to make a computer according to your needs. The doors in the front provides an extra level of protection for what's inside.

Ordering information

Part Number	Description
RM3010-0	3U Rackmount Chassis, Black, No P.S.
RM3010-30	3U Rackmount Chassis, Black, with 300W P.S.
RM3010-46	3U Rackmount Chassis, Black, with 460W P.S.
RM3010-R35	3U Rackmount Chassis, Black, with slim 350W HRP P.S.
