General
Information |
|
Form Factor |

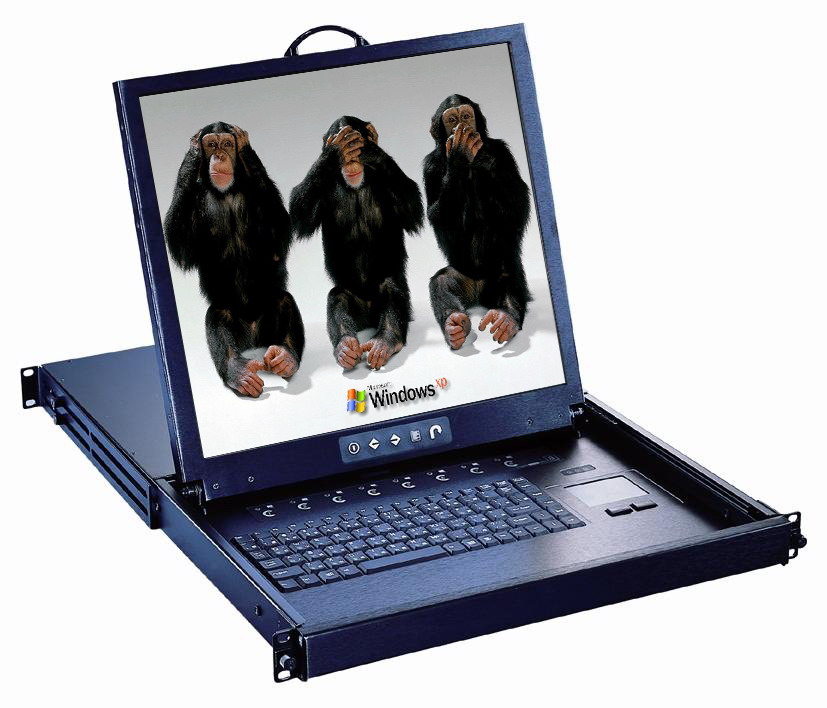

1U Rack mounting on slide-out
rails |
|
Compatibility
|
Multi-platform -
Mix PCs, IBMs, HPs & DELLs |
|
Server Side
Interface
|
| No
KVM : |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
PS2 KVM : |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
USB KVM : |
HD15 VGA, USB
Type A for
KB/MS |
|
New Combo Interface KVM: |
Either PS2 or
USB by
cable / dongle selection |
|
|
Rack Mounting
|
Adjustable ranges
from 15.3" to 35.2"
(390 to 895mm) |
|
LCD Screen |
|
LCD Type |
 Samsung
Grade A 19" Industrial
Active Matrix TFT LCD Panel |
|
Display Size |
19 inch diagonal |
|
Resolutions
|
1,280 x 1,024 with
60 / 70 / 75Hz |
|
Response time
|
Tr =1.3ms / Tf =
3.7ms
|
|
Contrast ratio
|
1000
: 1 |
|
Brightness
|
300
cd/ m2 |
|
Pixel pitch
|
0.294mm (H) x
0.294mm (W) |
|
Panel color
|
16.7 million
display colors
|
|
Viewing angle
|
160 / 160 (Horiz.
/ Vert.) |
|
OSD Control |
Brightness, Contrast, Phase &
Color, H & V
position, Auto-tune, Recall & Language |
|
Signal Input |
VGA, Analog RGB |
|
Optional Video
Input |
S-video &
Composite, DVI-D , S-Video + BNC
More
Details
 |
|
LCD MTBF |
50,000 hrs |
|
Keyboard & Pointing Device |
|
Model n / e |
Notebook type KB w/ 2-button Touchpad
|
|
Model
b |
Notebook type KB w/ 3-button mini
Trackball |
|
Model
c |
Cherry type KB w/ 2-button Trackball |
|
|
Keyboard Details
|
|
New
Integrated High Density CAT.5 KVM Switch Option
|
|
KVM port |
16 port or 32
port |
|
IP
Remote
|
TCP/IP access from anywhere
around the
world (with IP KVM) via RJ-45 connection |
|
Cat. 5 Remote |
1000 feet remote
access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection |
|
Cascade Expansion |
Up to 256
ports/servers by 8 level cascade
|
|
|
More Details
|
|
Cost
efficient
Integrated DB-15 KVM Switch Option |
|
KVM port |
8 port or 16 port
, HD15 female |
|
Port Access |
Channel button or
hot keys selectable |
|
Indicators |
Online (green) and
selected (red) status LED |
|
Cascade Expansion |
Up to 128
ports/servers
|
|
|
Standard DB-15
PS2 Type
Interface
More Details
|
|
IP
Remote
|
TCP/IP access from anywhere
around the
world (with IP KVM) |
|
Cat. 5 Remote |
500 feet remote
access by CAT. 5 cable
(with 2-console KVM) |
|
KB/MS Emulation |
PS/2,
with microprocessor support
hot-plugging |
|
Server Side
Interface |
VGA HD15, analog
RGB and 2 x 6-pin mini
DIN |
|
Support Platform |
MS Windows
3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and
MS DOS |
|
KVM cable |
PS/2 cable with 6,
10 , 15 & 33 feet option |
|
Cascade cable |
Cable to
PS2 KVM switch w/ 2 , 6 , 10 & 15
feet option |
|
|
Standard DB-15
USB Type
Interface
More
Details
|
|
Cat. 5 Remote |
1000 feet remote
access by CAT. 5 cable
(with 2-console KVM) |
|
KB/MS Emulation |
USB 1.1 Compliant,
support hot-plugging |
|
Server Side
Interface |
VGA HD15, analog
RGB, USB type A, support
hot-plugging |
|
Support Platform |
MS Windows
2000/XP, Solaris and SCO Unix |
|
KVM cable |
USB KVM cable
with 6, 10, 15 feet option |
|
Cascade cable |
Cable to
USB KVM switch w/ 6 feet
option |
|
Power Supply |
|
|
-Remote adapter : 110V - 220 V AC
Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
/
10.8 (L) x 6.1 (W) x 3 (H) cm
-Standard Cable length from mains plug to
adapter : 6ft / 182cm
-Standard Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input |
|
Integrated KVM |
|
8 or 16 KVM
ports : |
HD15
female |
|
IP console
port : |
RJ45
type (IP KVM model ) |
|
Remote console
port: |
RJ45
type (2-console model) |
|
Serial port
: |
DB9
(IP KVM model) |
|
Virtual Device
port : |
USB
type B (IP KVM model) |
|
PS/2 cascade
port : |
2 Mini
DIN & HD15 female |
|
USB cascade
port : |
HD15
female |
|
DC power input |
Plug-round
type |
|
|
Without KVM |
|
Console
port : |
for VGA PS/2
KB/MS, , HD 15 female |
|
DC power input
: |
Plug-round
type |
|
