3U Rackmount Chassis :  Part # RM3002
*click on picture for  enlarged view	Material: Heavy-duty cold-rolled steel  Dimension: 19" (W) x 25.6" (D) x 5.25" (H) Cooling: 3x 90mm ball-bearing fans ,  optional 2x 60mm ball-bearing fans PCI Extension: 7 Full length slots  Indicators: Power, Fail  & HDD LED's System Boards: 12" (W) x 13" (D) ATX M/B Alarm Board: Yes Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x1" internal HDD Power Supply: 350W or 400W or Redundant 500W

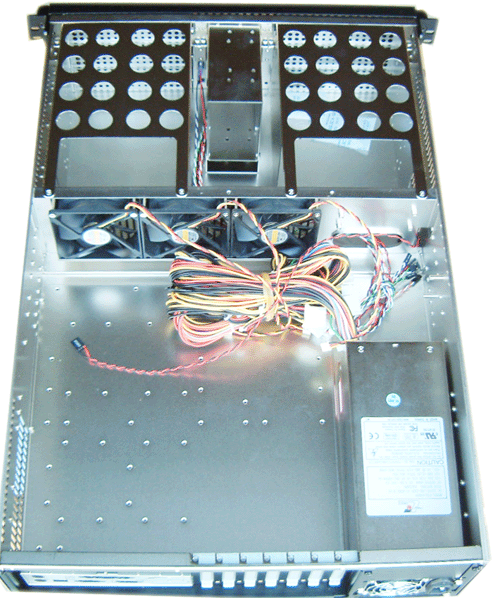

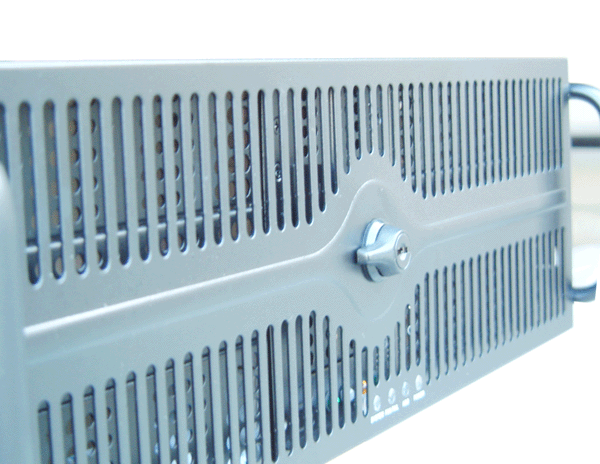

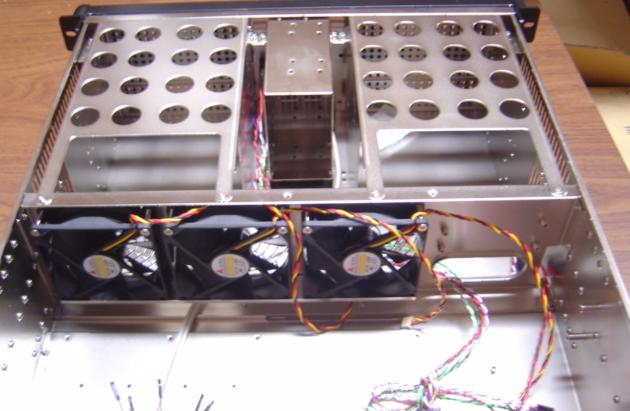

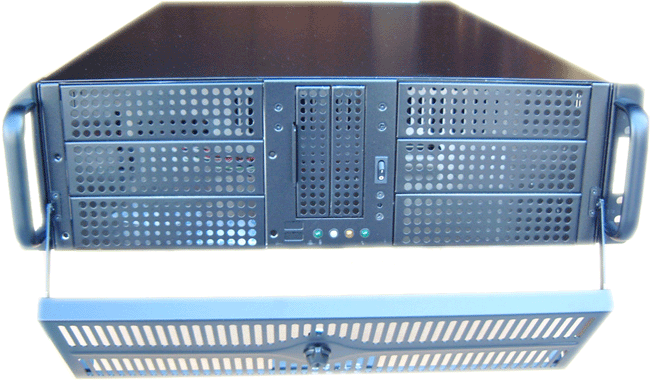

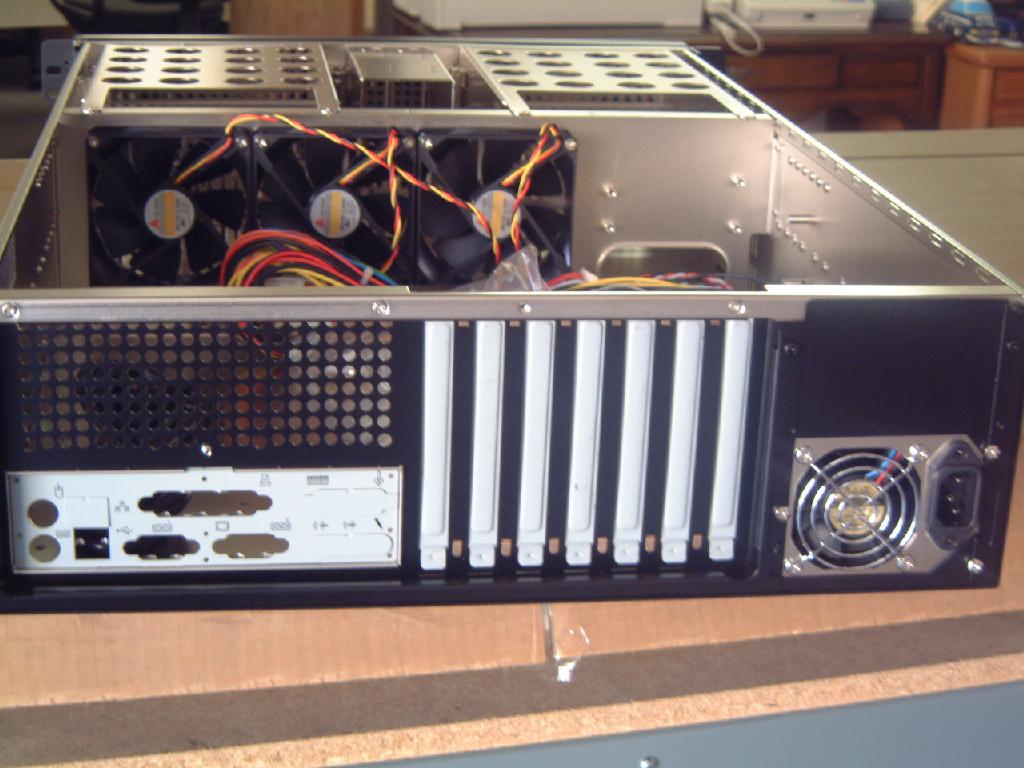

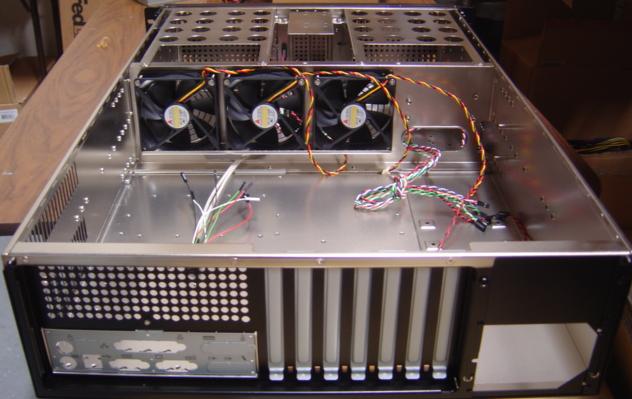

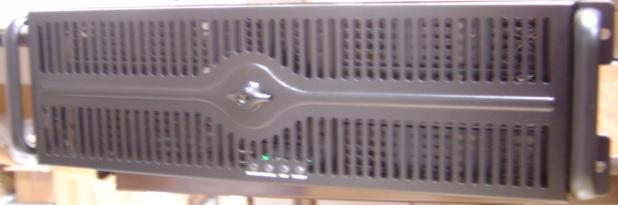

FEATURES: Basic 3U Rackmount Chassis for ATX motherboards. It includes 6x5.25" bays, 2x3.5" bays, 1x1" HDD bay, and maximum 5 ball-bearing fans push the air to cool the chassis. In the back, it features 7 full-height expansion slots for additional customization, and the front has a split cover to protect the drives from accidental tampering.

APPLICATIONS:
General-Purpose Server / File Server / Graphics Workstation /RAID box
Firewall / Data Storage.

Availability: Usually ships in 2-3 business days.

RM3002$258.00
Option: with 350W power supplywith 400W power supply (+20) with 460W power supply (+32) with 550W power supply (+55) with 600W power supply (+80)
:
Motherbard Used with this chassis: M/B using 20-pin + 4-pinM/B using 24-pin + 8-pinDual Tyan AMD 2462/2468 using special 24-pin + 8-pin(+12)
Sliding Rails: Not RequiredRL-01 : Pair of 20 inches sliding rails extensible to 24 inches(+$48)RL-02 : Pair of 26 inches sliding rails extensible to 30 inches(+$55)
