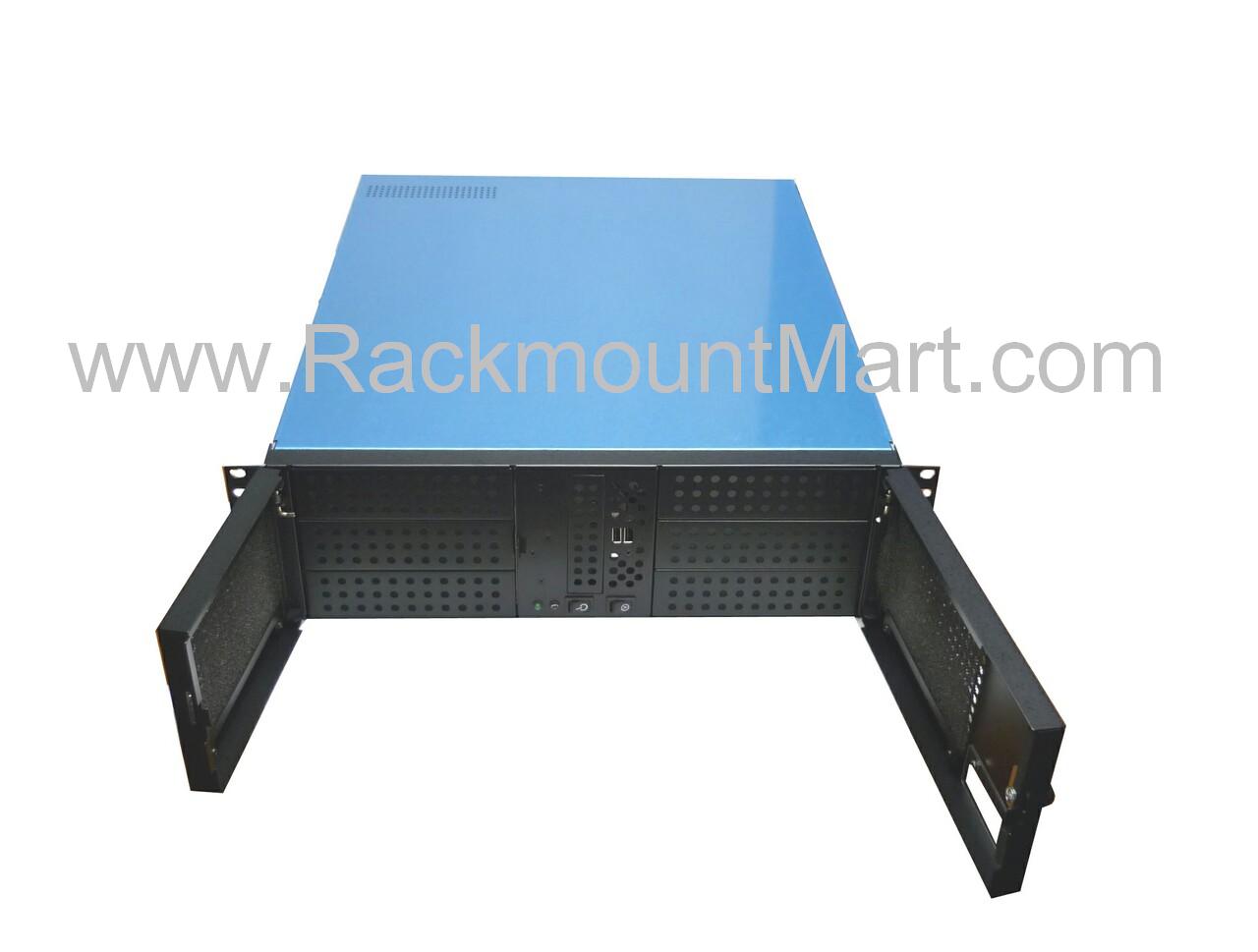

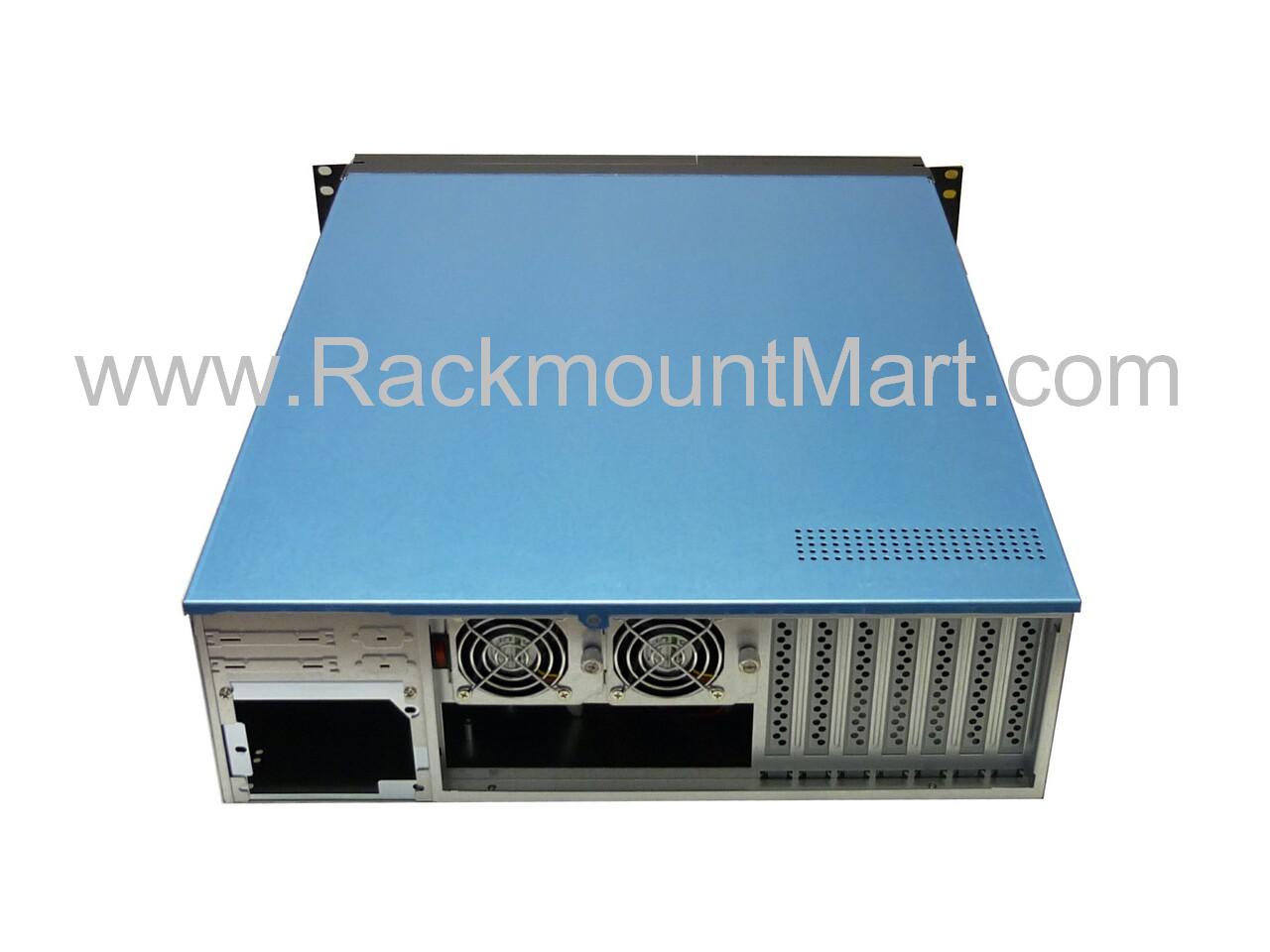

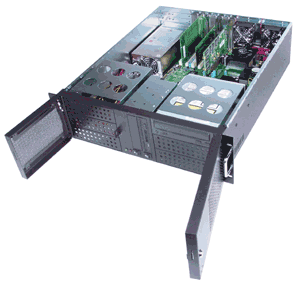

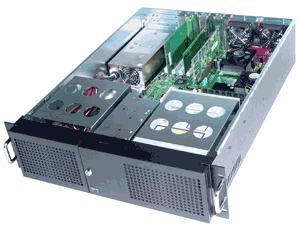

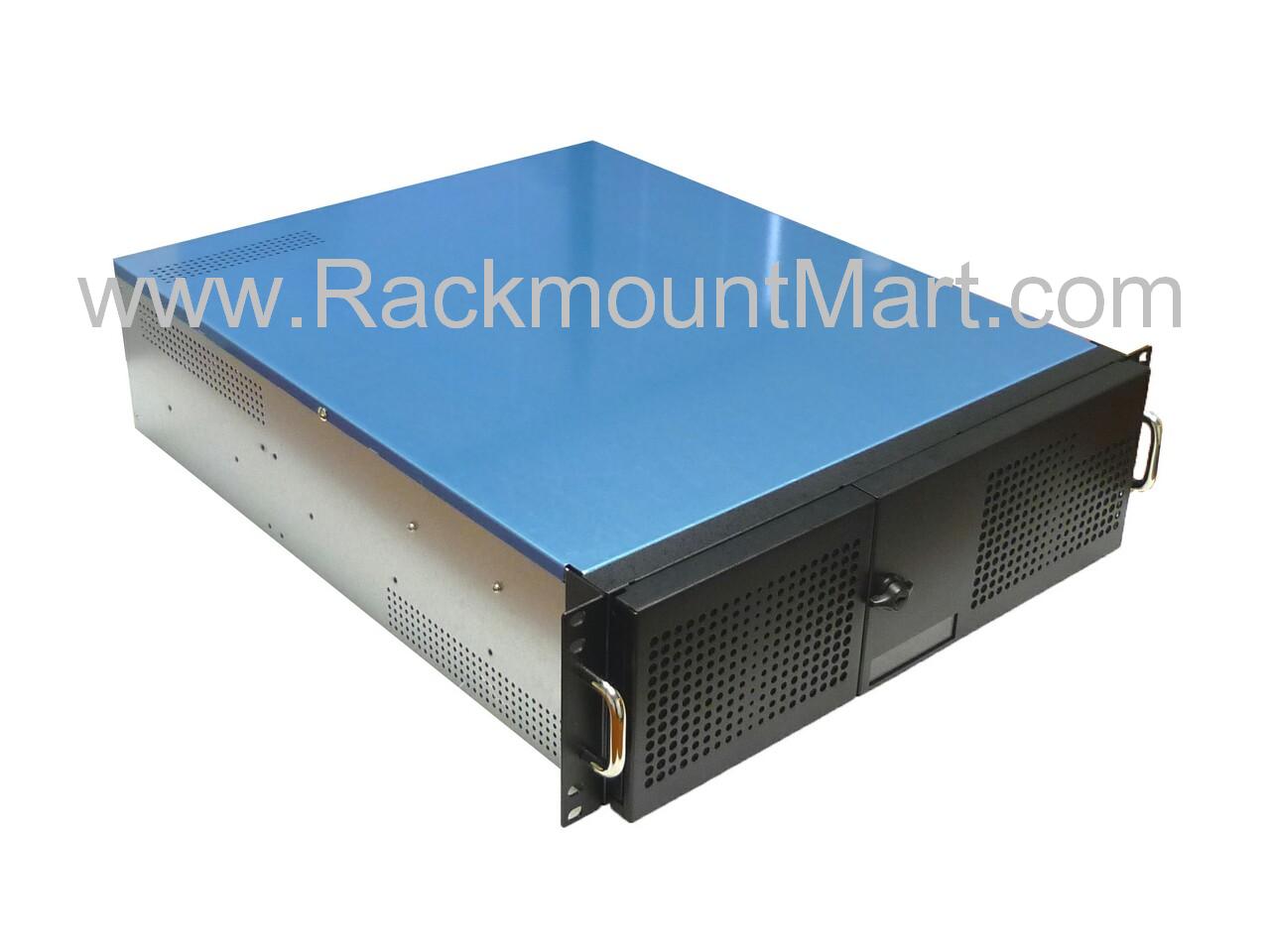

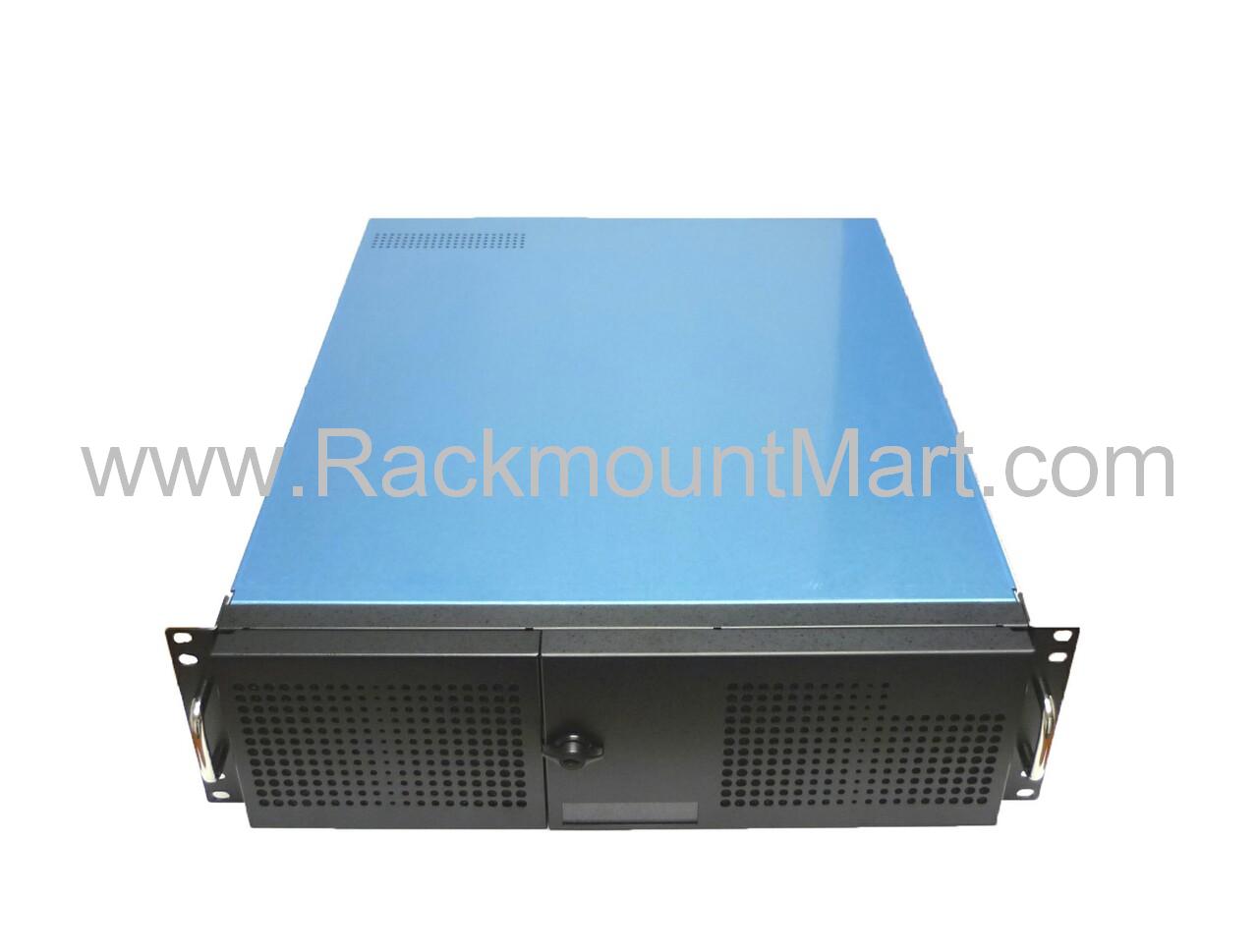

3U Rackmount Chassis :
Part #
RM3001
|
 |
Material:
Heavy-duty cold-rolled steel
with bright chromate finishing
Dimension: 19"
(W) x21" (D) x 5.25" (H)
Fan: 2x60
ball-bearing fans
PCI Extension: 7
Full length slots with
maximum 3.9" in height
Air Filter:
Removable and washable
Controls: Power
on/off and system reset
Indicators:
Power & HDD LED's
System Boards:
12" (W) x 10.5" (D) ATX
M/B
Speaker: 0.4W
built-in
Drive Bay:
6x5.25" + 2x3.5" exposed bays
+ 1x1" internal HDD
Temperature: 0
¢XC(32 F) - 50 ¢XC(122 F)
Humidity: 5% -
95% non-condensing
|
FEATURES:
-Entry Level 3U Rackmount Chassis for ATX motherboard
- Supports 7 full-length expansion slots
BENEFITS:
Spacious. Gives rooms for expansion & customizability. Enough
drive bays and slots for future expansion .
APPLICATIONS:
General-Purpose Server / File Server / Graphics Workstation / RAID box /
Data Storage
