Panel :
SAMSUNG
19" LCD Panel
|
Display type
|
TFT / LCD active matrix
color
|
|
Resolutions
|
1280 x 1024
|
|
Response time
|
Tr =1.7s / Tf =6.3ms
|
|
Contrast ratio
|
700
: 1 typical
|
|
Brightness
|
300 nits brightness |
|
Pixel pitch
|
0.294mm (H) x 0.294mm (W)
|
|
Panel color
|
16.7 million display
colors
|
|
LCD MBTD |
50,000 hrs |
|
Viewing angle
|
150?(Horiz.) / 135?
(Vert.)
|
|
OSD Control :
|
Brightness, Contrast, Phase & Clock, Color, H & V Position,Auto-tune,
Recall & Language |
|
Options :
|
DVI , BNC, S-Video &
Composite Video |
|
Optional Accessories & Peripheral
|
Details
|
|
Dimension:
|
17.4"(W) x 1.74" (H) x
23.62"(D) / 44.2(W) x 4.4(H) x
60(D)cm |
|
Storage temp.
|
0慢 to 50慢
|
|
Operating temp.
|
-25慢 to 60慢
|
|
Safety Approval
|
FCC,
CE
|
|
Package Content |
LCD Monitor drawer x 1 , 6-ft VGA cable
x 1, 110 / 220 V DC Power adapter x 1 , Power cord x 1, Key for front
lock x 2, User Manual x 1 |
|
Remarks: |
For SUN Solaris Compatible version , click
this
Link
|
|

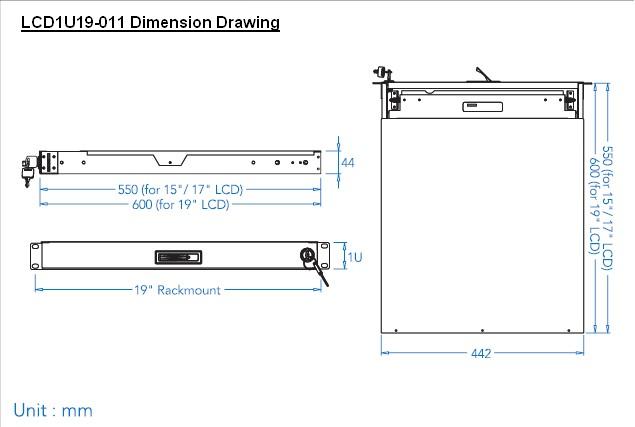

*click on
drawings for enlarged view
Free Ground Shipping
*Click
for details
|
FEATURES :
- SAMSUNG LCD Panel
- Supports Windows , Sun, Linux, Apple,
IBM, HP , UNIX and Macintosh computers
- Unique mechanical design
to maximize rack mountable space
- Unique monitor flip up
design allows viewing through closed glass door of cabinet
- Adjustable mounting brackets from 390mm
to 845mm. (front to rear 19?mounts)
- Lightweight aluminum
construction - with a black anodize finish
- Side to side wide-angle
viewing as CRT monitor
- Lock out rails to prevent movement of
the keyboard
- Built in on screen
display controlled by integral membrane switches
- Power saving feature for
prolonging the life of LCD panel
- Standard D-sub 15-pin
VGA input connector
- Front-access lock for
security & secure transportation
- Supplied with 12V 5A remote power
adapter (single power source)
- EMC shielding around the
monitor housing to minimize interference
- All mounting hardware included
- Standard 6 ft VGA cable included
POWER SUPPLY:
- Adapter Size :
4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
- Cable length from mains plug to adapter
: 6ft / 182cm
- Cable length from adapter to unit : 6ft
/ 180cm
- Safety approval : FCC CE
- Mains plug options available
- Optional - power adaptor 48V or 24V DC
input available
Ordering
information
| Part
Number |
Description |
|
LCD1U19-011 / RP119
Price : $803 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer, one 6-ft
long VGA cable included |
|
LCD1U19-011-av / RP119AV
Price : $909 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video , one 6-ft
long VGA cable included |
|
LCD1U19-011-dvi / RP119DVI
Price : $909 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer with
DVI input , one 6-ft long VGA cable included |
|
LCD1U19-011-bnc / RP119BNC
Price : $909 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer with
BNC (bayonet Neill- Concelman)
connector & S-Video , one 6-ft
long VGA cable included |
|
LCD1U19-011-av-dvi / RP119 AV-DVI
Price : $1015 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer with
S-Video & Composite Video and DVI , one 6-ft
long VGA cable included |
|
LCD1U19-011-av-dvi / RP119 BNC-DVI
Price : $1015 |
1U
Rack-mount 19" SAMSUNG TFT LCD Monitor Drawer with
BNC and DVI , one 6-ft
long VGA cable included |
|
|
